01. Permanent Magnetic Lifters Introduction
Permanent magnetic lifters are widely used for lifting the iron objects in mechanical processing, engineering machinery and mold manufacturing industries.
Advantages:
- Compact structure, light weight and easy to operate.
- No electricity needed, permanent magnetic performance, saftey and being able to be operated in remote area.
- High safety coefficient: maximum pull-off force is 3-3.5 times as big as rated capacity.
- With safety device to prevent misoperation.
- Maintenance free and long product life.
- “V” shape groove design for lifting flat and circular workpiece.
02. Permanent Magnetic Lifters Technical Data
-
PML_A series (3 times safety coefficient)
| Model | Rated Capacity (kgs) | Size (mm) | Max Pull-off force (kgf) | Limits for Cylindrical Workpiece | Net Weight (kgs) | |||||
| L | B | H | R | Le | Diameter (mm) | Weight (kgs) | ||||
| PMLA-300 | 300 | 192 | 92 | 91 | 150 | 154 | 1,050 | ≥60 | ≤100 | 9.6 |
| PMLA-600 | 600 | 314 | 120 | 92 | 216 | 267 | 1,800 | ≥70 | ≤200 | 18 |
| PMLA-1000 | 1,000 | 363 | 142 | 118 | 307 | 342 | 3,000 | ≥90 | ≤300 | 37 |
| PMLA-2000 | 2,000 | 537 | 165 | 164 | 367 | 482 | 6,000 | ≥120 | ≤600 | 120 |
| PMLA-3000 | 3,000 | 542 | 234 | 212 | 451 | 368 | 9,000 | 150 | ||
| PMLA-5000 | 5,000 | 615 | 286 | 264 | 15,000 | 275 |
-
PML_B series (3.5 times safety coefficient)
| Model | Rated Capacity (kgs) | Size (mm) | Max Pull-off force (kgf) | Limits for Cylindrical Workpiece | Net Weight (kgs) | |||||
| L | B | H | R | Le | Diameter (mm) | Weight (kgs) | ||||
| PMLB-1 | 100 | 116 | 62 | 67 | 106 | 84 | 350 | ≥50 | ≤30 | 2.6 |
| PMLB-3 | 300 | 192 | 92 | 91 | 150 | 154 | 1,050 | ≥60 | ≤100 | 9.6 |
| PMLB-6 | 600 | 271 | 122 | 117 | 196 | 224 | 2,100 | ≥70 | ≤200 | 23 |
| PMLB-600 | 600 | 328 | 120 | 92 | 216 | 267 | 2,100 | ≥70 | ≤200 | 20 |
| PMLB-10 | 1,000 | 305 | 176 | 163 | 264 | 250 | 3,500 | ≥90 | ≤300 | 54 |
| PMLB-1000 | 1,000 | 412 | 142 | 118 | 307 | 342 | 3,500 | ≥90 | ≤300 | 42 |
| PMLB-20 | 2,000 | 452 | 234 | 212 | 426 | 368 | 7,000 | ≥120 | ≤600 | 130 |
| PMLB-30 | 3,000 | 550 | 286 | 264 | 521 | 448 | 10,500 | 249 |
-
PML_C series
| Model | Rated Capacity (kgs) | Size (mm) | Max Pull-off force (kgf) | Working Temperature (℃) | |||
| L | B | H | R | ||||
| PMLC-100 | 100 | 92 | 62 | 69 | 155 | 320 | ≤80 |
| PMLC-200 | 200 | 122 | 62 | 69 | 155 | 640 | ≤80 |
| PMLC-300 | 300 | 160 | 95 | 95 | 200 | 960 | ≤80 |
| PMLC-400 | 400 | 160 | 95 | 95 | 200 | 1280 | ≤80 |
| PMLC-600 | 600 | 210 | 120 | 120 | 230 | 1920 | ≤80 |
| PMLC-1000 | 1000 | 260 | 150 | 140 | 255 | 3200 | ≤80 |
| PMLC-1500 | 1500 | 340 | 150 | 140 | 255 | 4800 | ≤80 |
| PMLC-2000 | 2000 | 350 | 175 | 175 | 320 | 6400 | ≤80 |
| PMLC-3000 | 3000 | 440 | 175 | 175 | 380 | 9600 | ≤80 |
| PMLC-4000 | 4000 | 520 | 175 | 175 | 550 | 12800 | ≤80 |
| PMLC-5000 | 5000 | 600 | 230 | 215 | 600 | 16000 | ≤80 |
| PMLC-6000 | 6000 | 600 | 270 | 265 | 700 | 19200 | ≤80 |

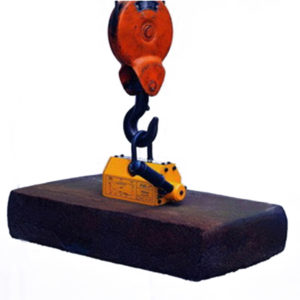

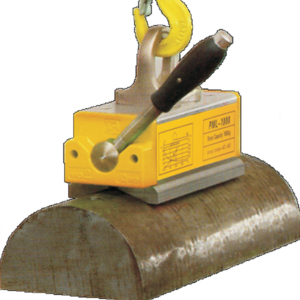

03. Permanent Magnetic Lifters Pictures
04. Permanent Magnetic Lifters Packaging
05. Permanent Magnetic Lifters Shipping
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
For more details about permanent magnetic lifters, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
