Countersunk neodymium magnets
Block/rectangular and disc neodymium magnets with countersunk holes can be easily fixed by screws on the flat surface. The material grades can be from N33, N35 to N52.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Relative Products
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: Sinnyuan magnet |
| Product Name: Countersunk neodymium magnets | Type: Permanent magnet |
| Rare Earth Magnet Type: Neodymium magnet | Shape: Block and disk shapes |
| Material: Neodymium iron boron | Grade: N35-N52 (M.H.SH.UH.EH.AH) |
| Size: Customized size | Coating: Customized |

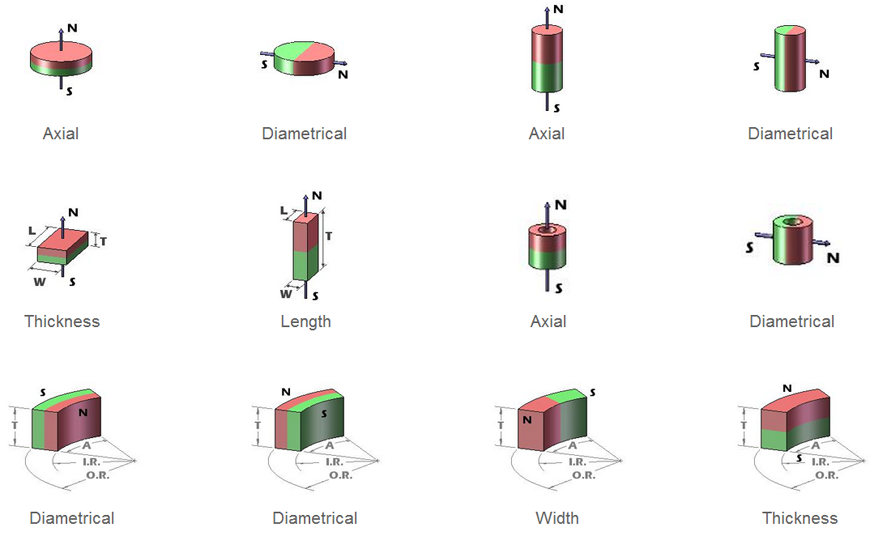

| Magnetization direction: Customzied specific requirements | Color: Multiple |
| Accuracy: 0.05mm | Application: Industrial magnet |
Some of Countersunk Neodymium Magnets Sizes We Are Making
- With Inch Dimensions
| No. | Some of Countersunk Neodymium Rare Earth Magnets We Are Making (Inch Unit) |
|---|---|
| 1 | Disc Magnet Ø0.591", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 2 | Disc Magnet Ø0.709", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 3 | Disc Magnet Ø0.906", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 4 | Disc Magnet Ø1.063", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 5 | Disc Magnet Ø1.339", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 6 | Disc Magnet Ø1.654", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 7 | Disc Magnet Ø1.969", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 8 | Countersunk Neodymium Disc Magnet N52 Dia 1/2"x3/8" W/ #6 Countersunk Hole On Both Sides |
| 9 | Neodymium Disc Magnet N52 5/8"x1/8" With #6 Countersink On N Or S |
| 10 | Countersunk Neodymium Disc Magnet N52 Dia 5/8"x3/16" W/ #6 Countersunk Hole On N Or S |
| 11 | Disc Magnet N52 5/8"x1/4" Neodymium With #6 Countersink |
| 12 | N52 3/4"x1/8" Neodymium Rare Earth Disc Magnet With #8 Countersink On N Or S |
| 13 | N52 3/4"x1/4" Neodymium Rare Earth Disc Magnet W/ #6 Countersink On both Sides - Plastic Coated |
| 14 | N52 3/4"x1/4" Neodymium Rare Earth Disc Magnet W/ #8 Countersink On N Or S |
| 15 | Neodymium Rare Earth Disc Magnet N52 1.26"x0.252" W/ #10 Countersink On N Or S |
| 16 | Block Magnet 0.591"x0.591"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 17 | Block Magnet 0.787"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 18 | Block Magnet 1.575"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 19 | Block Magnet 1.575"x1.575"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 20 | Block Magnet 2.362"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 21 | Block Magnet 3.150"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 22 | Neodymium Block Magnet W/ two #6 Countersunk Holes N52 1"x1/2"x1/8" |
| 23 | N52 2"x1"x1/2" Neodymium Rare Earth Block Magnet /w #10 Countersunk Hole On Both Sides |
| 24 | Neodymium Block Magnet N52 2"x2"x1" With #1/4 Countersunk Hole |
| 25 | Bar Magnet Neodymium N52 2x1x1/2" W/2 #8 Countersunk Holes On Both Sides |
| 26 | Disc Magnet Ø0.591", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 27 | Disc Magnet Ø0.709", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 28 | Disc Magnet Ø0.906", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 29 | Disc Magnet Ø1.063", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 30 | Disc Magnet Ø1.339", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 31 | Disc Magnet Ø1.654", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 32 | Disc Magnet Ø1.969", Height 0.157", With Countersunk Borehole, N35, Nickel Plated |
| 33 | Block Magnet 0.591"x0.591"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 34 | Block Magnet 0.787"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 35 | Block Magnet 1.575"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 36 | Block Magnet 1.575"x1.575"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 37 | Block Magnet 2.362"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 38 | Block Magnet 3.15"x0.787"x0.157", With Countersunk Borehole, N35, Nickel Plated |
| 39 | 0.984" Diax0.787" Thickx0.236" Hole Ultra High Performance N52 Neodymium Magnet |
| 40 | 1/2" x 1/4" x 1/2" Thick, Countersunk Thru The Side For #6 Screw, Nickel Plated, Block Neodymium Magnet, N42 |
| 41 | 1/2" x 1/2" x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Block Neodymium Magnet, N45 |
| 42 | 3/4" x 1/2" x 1/8" Thick, with a Countersunk Hole For a #6 Screw, Nickel Plated, South Pole Facing Out, Block Neodymium Magnet, N42 |
| 43 | 3/4" x 1/2" x 1/8" Thick, with a Countersunk Hole For a #6 Screw, Nickel Plated, North Pole Facing Out, Block Neodymium Magnet, N45H |
| 44 | 3/4" x 1/2" x 1/8" Thick, with a Countersunk Hole For a #6 Screw, Nickel Plated, Block Neodymium Magnet, N45 |
| 45 | 3/4" x 1/2" x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Block Neodymium Magnet, N52 |
| 46 | 3/4" x 3/4" x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Block Neodymium Magnet, N45H |
| 47 | 1" x 1/4" x 1/2" Thick, Countersunk 2x Thru The Side For #6 Screw, Nickel Plated, Block Neodymium Magnet, N35 |
| 48 | 1" x 1/2" x 1/8" Thick, with 2 Holes To Accept #6 Countersunk Screws, Nickel Plated, Block Neodymium Magnet, N45 |
| 49 | 1" x 1/2" x 1/8" Thick, with 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, South Pole Facing Out, Block Neodymium Magnet, N35 |
| 50 | 1" x 1/2" x 1/8" Thick, with 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, North Pole Facing Out, Block Neodymium Magnet, N45 |
| 51 | 1" x 1/2" x 1/2" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N45H |
| 52 | 1" x 1" x 3/16" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N35 |
| 53 | 1 1/2" x 1/2" x 1/4" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N35 |
| 54 | 2" x 1/2" x 1/4" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N42 |
| 55 | 2" x 1" x 1/4" Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Block Neodymium Magnet, N35 |
| 56 | 2" x 1" x 1/2" Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Block Neodymium Magnet, N42SH |
| 57 | 1/4" OD x 1/8" Thick with Countersunk Hole For #2 Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 58 | 1/4" OD x 1/8" Thick with Countersunk Hole For #2 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N45 |
| 59 | 1/4" OD x 1/8" Thick with Countersunk Hole For #2 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48M |
| 60 | 1/4" OD x 1/8" Thick with Countersunk Hole For #2 Screw, Nickel Plated, Ring Neodymium Magnet, N35 |
| 61 | 1/4" OD x 1/8" Thick with Countersunk Hole For #2 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N40H |
| 62 | 1/4" OD x 1/8" Thick with Countersunk Hole For #2 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N45 |
| 63 | 3/8" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N35 |
| 64 | 3/8" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N48H |
| 65 | 3/8" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 66 | 3/8" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 67 | 3/8" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42 |
| 68 | 3/8" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 69 | 1/2" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N40H |
| 70 | 1/2" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 71 | 1/2" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42 |
| 72 | 1/2" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 73 | 1/2" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42 |
| 74 | 1/2" OD x 1/8" Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N45 |
| 75 | 5/8" OD x 1/8" Thick with Countersunk Hole For #6 Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 76 | 5/8" OD x 1/8" Thick with Countersunk Hole For #6 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 77 | 5/8" OD x 1/8" Thick with Countersunk Hole For #6 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48M |
| 78 | 5/8" OD x 1/8" Thick with Countersunk Hole For #6 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 79 | 5/8" OD x 1/8" Thick with Countersunk Hole For #6 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N45 |
| 80 | 5/8" OD x 1/8" Thick with Countersunk Hole For #6 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N35 |
| 81 | 3/4" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 82 | 3/4" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N48H |
| 83 | 3/4" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42 |
| 84 | 3/4" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N45 |
| 85 | 3/4" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 86 | 3/4" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 87 | 3/4" OD x 0.194" ID x 0.349" ID x 1/4" Thick, Double Countersunk Hole Accepts #8 Screws, Ring Neodymium Magnet, N45 |
| 88 | 3/4" OD x 0.136" ID x 0.242" ID x 1/4" Thick, Double Countersunk Hole Accepts #4 Screws, Black Plastic Coated, Ring Neodymium Magnet, N42 |
| 89 | 7/8" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N48M |
| 90 | 7/8" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 91 | 7/8" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48H |
| 92 | 7/8" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 93 | 7/8" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N45 |
| 94 | 7/8" OD x 1/8" Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N45 |
| 95 | 1" OD x 3/16" Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, Ring Neodymium Magnet, N35 |
| 96 | 1" OD x 3/16" Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 97 | 1" OD x 3/16" Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 98 | 1" OD x 3/16" Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 99 | 1" OD x 3/16" Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 100 | 1" OD x 3/16" Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48H |
| 101 | 1" OD x 0.194" ID x 0.349" ID x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Black Plastic Coated, Ring Neodymium Magnet, N40H |
| 102 | 1 1/4" OD x 0.194" ID x 0.349" ID x 1/4" Thick, Double Countersunk Hole Accepts A #8 Screw, Ring Neodymium Magnet, N42 |
| 103 | 1 1/4" OD x 0.221" ID x 0.402" ID x 3/8" Thick, Double Countersunk Hole Accepts #10 Screws, Black Plastic Coated, Ring Neodymium Magnet, N48M |
| 104 | 1 1/2" OD x 0.221" ID x 0.402" ID x 3/8" Thick, Double Countersunk Hole Accepts A #10 Screw, Ring Neodymium Magnet, N35 |
| 105 | 2" OD x 0.281" ID x 0.527" ID x 1/2" Thick, Double Countersunk Hole Accepts A 1/4"-20 Screw, Ring Neodymium Magnet, N45 |
| 106 | 1/2" x 1/4" x 1/2" Thick, Countersunk Thru The Side For #6 Screw, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 107 | 1/2" x 1/2" x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 108 | 3/4" x 1/2" x 1/8" Thick, With A Countersunk Hole For A #6 Screw, Nickel Plated, Magnetized Thru Thickness, South Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 109 | 3/4" x 1/2" x 1/8" Thick, With A Countersunk Hole For A #6 Screw, Nickel Plated, Magnetized Thru Thickness, North Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 110 | 3/4" x 1/2" x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N40 |
| 111 | 3/4" x 3/4" x 1/4" Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 112 | 3/4" x 3/4" x 1/4" Thick, Double Countersunk W/ Hole To Accept A #6 Screw, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 113 | 1" x 1/4" x 1/2" Thick, Countersunk 2x Thru The Side For #6 Screw, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 114 | 1" x 1/2" x 1/8" Thick, With 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, South Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 115 | 1" x 1/2" x 1/8" Thick, With 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, North Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 116 | 1" x 1/2" x 1/2" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N42 |
| 117 | 1" x 1" x 3/16" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 118 | 1" x 1" x 1/2" Thick, Counterbored Hole Accepts #10 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 119 | 1" x 1" x 1/2" Thick, Double Countersunk W/ Hole To Accept #8 Screws, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 120 | 1 1/2" x 1/2" x 1/4" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N40 |
| 121 | 1 1/2" x 3/4" x 3/8" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 122 | 2" x 1/2" x 1/4" Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 123 | 2" x 1" x 1/4" Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N42 |
| 124 | 2" x 1" x 1/2" Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 125 | 2" x 1" x 1/2" Thick, Double Countersunk W/ Holes To Accept #8 Screws, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
- With Metric Dimensions
| No. | Some of Countersunk Neodymium Rare Earth Magnets We Are Making (Metric Unit) |
|---|---|
| 1 | Disc Magnet Ø15mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 2 | Disc Magnet Ø18mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 3 | Disc Magnet Ø23mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 4 | Disc Magnet Ø27mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 5 | Disc Magnet Ø34mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 6 | Disc Magnet Ø42mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 7 | Disc Magnet Ø50mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 8 | Countersunk Neodymium Disc Magnet N52 Dia 12.7mmx9.5mm W/ #6 Countersunk Hole On Both Sides |
| 9 | Neodymium Disc Magnet N52 15.9mmx3.2mm With #6 Countersink On N Or S |
| 10 | Countersunk Neodymium Disc Magnet N52 Dia 15.9mmx4.8mm W/ #6 Countersunk Hole On N Or S |
| 11 | Disc Magnet N52 15.9mmx6.4mm Neodymium With #6 Countersink |
| 12 | N52 19.1mmx3.2mm Neodymium Rare Earth Disc Magnet With #8 Countersink On N Or S |
| 13 | N52 19.1mmx6.4mm Neodymium Rare Earth Disc Magnet W/ #6 Countersink On both Sides - Plastic Coated |
| 14 | N52 19.1mmx6.4mm Neodymium Rare Earth Disc Magnet W/ #8 Countersink On N Or S |
| 15 | Neodymium Rare Earth Disc Magnet N52 32mmx6.4mm W/ #10 Countersink On N Or S |
| 16 | Block Magnet 15x15x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 17 | Block Magnet 20x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 18 | Block Magnet 40x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 19 | Block Magnet 40x40x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 20 | Block Magnet 60x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 21 | Block Magnet 80x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 22 | Neodymium Block Magnet W/ two #6 Countersunk Holes N52 25.4mmx12.7mmx3.2mm |
| 23 | N52 50.8mmx25.4mmx12.7mm Neodymium Rare Earth Block Magnet /w #10 Countersunk Hole On Both Sides |
| 24 | Neodymium Block Magnet N52 50.8mmx50.8mmx25.4mm With #1/4 Countersunk Hole |
| 25 | Bar Magnet Neodymium N52 2x1x12.7mm W/2 #8 Countersunk Holes On Both Sides |
| 26 | Disc Magnet Ø15mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 27 | Disc Magnet Ø18mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 28 | Disc Magnet Ø23mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 29 | Disc Magnet Ø27mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 30 | Disc Magnet Ø34mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 31 | Disc Magnet Ø42mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 32 | Disc Magnet Ø50mm, Height 4mm, With Countersunk Borehole, N35, Nickel Plated |
| 33 | Block Magnet 15x15x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 34 | Block Magnet 20x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 35 | Block Magnet 40x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 36 | Block Magnet 40x40x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 37 | Block Magnet 60x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 38 | Block Magnet 80x20x4mm, With Countersunk Borehole, N35, Nickel Plated |
| 39 | 25mm Diax20mm Thickx6mm Hole Ultra High Performance N52 Neodymium Magnet |
| 40 | 12.70mm x 6.40mm x 12.70mm Thick, Countersunk Thru The Side For #6 Screw, Nickel Plated, Block Neodymium Magnet, N42 |
| 41 | 12.70mm x 12.70mm x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Block Neodymium Magnet, N45 |
| 42 | 19.0mm x 12.70mm x 3.20mm Thick, with a Countersunk Hole For a #6 Screw, Nickel Plated, South Pole Facing Out, Block Neodymium Magnet, N42 |
| 43 | 19.0mm x 12.70mm x 3.20mm Thick, with a Countersunk Hole For a #6 Screw, Nickel Plated, North Pole Facing Out, Block Neodymium Magnet, N45H |
| 44 | 19.0mm x 12.70mm x 3.20mm Thick, with a Countersunk Hole For a #6 Screw, Nickel Plated, Block Neodymium Magnet, N45 |
| 45 | 19.0mm x 12.70mm x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Block Neodymium Magnet, N52 |
| 46 | 19.0mm x 19.0mm x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Block Neodymium Magnet, N45H |
| 47 | 25.40mm x 6.40mm x 12.70mm Thick, Countersunk 2x Thru The Side For #6 Screw, Nickel Plated, Block Neodymium Magnet, N35 |
| 48 | 25.40mm x 12.70mm x 3.20mm Thick, with 2 Holes To Accept #6 Countersunk Screws, Nickel Plated, Block Neodymium Magnet, N45 |
| 49 | 25.40mm x 12.70mm x 3.20mm Thick, with 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, South Pole Facing Out, Block Neodymium Magnet, N35 |
| 50 | 25.40mm x 12.70mm x 3.20mm Thick, with 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, North Pole Facing Out, Block Neodymium Magnet, N45 |
| 51 | 25.40mm x 12.70mm x 12.70mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N45H |
| 52 | 25.40mm x 25.40mm x 4.80mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N35 |
| 53 | 38.10mm x 12.70mm x 6.40mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N35 |
| 54 | 50.80mm x 12.70mm x 6.40mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Block Neodymium Magnet, N42 |
| 55 | 50.80mm x 25.40mm x 6.40mm Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Block Neodymium Magnet, N35 |
| 56 | 50.80mm x 25.40mm x 12.70mm Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Block Neodymium Magnet, N42SH |
| 57 | 6.40mm OD x 3.20mm Thick with Countersunk Hole For #2 Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 58 | 6.40mm OD x 3.20mm Thick with Countersunk Hole For #2 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N45 |
| 59 | 6.40mm OD x 3.20mm Thick with Countersunk Hole For #2 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48M |
| 60 | 6.40mm OD x 3.20mm Thick with Countersunk Hole For #2 Screw, Nickel Plated, Ring Neodymium Magnet, N35 |
| 61 | 6.40mm OD x 3.20mm Thick with Countersunk Hole For #2 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N40H |
| 62 | 6.40mm OD x 3.20mm Thick with Countersunk Hole For #2 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N45 |
| 63 | 9.50mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N35 |
| 64 | 9.50mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N48H |
| 65 | 9.50mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 66 | 9.50mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 67 | 9.50mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42 |
| 68 | 9.50mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 69 | 12.70mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N40H |
| 70 | 12.70mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 71 | 12.70mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42 |
| 72 | 12.70mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 73 | 12.70mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42 |
| 74 | 12.70mm OD x 3.20mm Thick with Countersunk Hole For #4 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N45 |
| 75 | 15.90mm OD x 3.20mm Thick with Countersunk Hole For #6 Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 76 | 15.90mm OD x 3.20mm Thick with Countersunk Hole For #6 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 77 | 15.90mm OD x 3.20mm Thick with Countersunk Hole For #6 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48M |
| 78 | 15.90mm OD x 3.20mm Thick with Countersunk Hole For #6 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 79 | 15.90mm OD x 3.20mm Thick with Countersunk Hole For #6 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N45 |
| 80 | 15.90mm OD x 3.20mm Thick with Countersunk Hole For #6 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N35 |
| 81 | 19.0mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N48H |
| 82 | 19.0mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N48H |
| 83 | 19.0mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42 |
| 84 | 19.0mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N45 |
| 85 | 19.0mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 86 | 19.0mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 87 | 19.0mm OD x 4.90mm ID x 8.90mm ID x 6.40mm Thick, Double Countersunk Hole Accepts #8 Screws, Ring Neodymium Magnet, N45 |
| 88 | 19.0mm OD x 3.50mm ID x 6.10mm ID x 6.40mm Thick, Double Countersunk Hole Accepts #4 Screws, Black Plastic Coated, Ring Neodymium Magnet, N42 |
| 89 | 22.20mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N48M |
| 90 | 22.20mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 91 | 22.20mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48H |
| 92 | 22.20mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 93 | 22.20mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N45 |
| 94 | 22.20mm OD x 3.20mm Thick with Countersunk Hole For #8 Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N45 |
| 95 | 25.40mm OD x 4.80mm Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, Ring Neodymium Magnet, N35 |
| 96 | 25.40mm OD x 4.80mm Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N35 |
| 97 | 25.40mm OD x 4.80mm Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 98 | 25.40mm OD x 4.80mm Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, Ring Neodymium Magnet, N42 |
| 99 | 25.40mm OD x 4.80mm Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, South Pole Facing Out, Ring Neodymium Magnet, N42SH |
| 100 | 25.40mm OD x 4.80mm Thick, Countersunk Hole Accepts #10 Countersunk Screw, Nickel Plated, North Pole Facing Out, Ring Neodymium Magnet, N48H |
| 101 | 25.40mm OD x 4.90mm ID x 8.90mm ID x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Black Plastic Coated, Ring Neodymium Magnet, N40H |
| 102 | 31.80mm OD x 4.90mm ID x 8.90mm ID x 6.40mm Thick, Double Countersunk Hole Accepts A #8 Screw, Ring Neodymium Magnet, N42 |
| 103 | 31.80mm OD x 5.60mm ID x 10.20mm ID x 9.50mm Thick, Double Countersunk Hole Accepts #10 Screws, Black Plastic Coated, Ring Neodymium Magnet, N48M |
| 104 | 38.10mm OD x 5.60mm ID x 10.20mm ID x 9.50mm Thick, Double Countersunk Hole Accepts A #10 Screw, Ring Neodymium Magnet, N35 |
| 105 | 50.80mm OD x 7.10mm ID x 13.40mm ID x 12.70mm Thick, Double Countersunk Hole Accepts A 6.40mm-20 Screw, Ring Neodymium Magnet, N45 |
| 106 | 12.70mm x 6.40mm x 12.70mm Thick, Countersunk Thru The Side For #6 Screw, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 107 | 12.70mm x 12.70mm x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 108 | 19.0mm x 12.70mm x 3.20mm Thick, With A Countersunk Hole For A #6 Screw, Nickel Plated, Magnetized Thru Thickness, South Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 109 | 19.0mm x 12.70mm x 3.20mm Thick, With A Countersunk Hole For A #6 Screw, Nickel Plated, Magnetized Thru Thickness, North Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 110 | 19.0mm x 12.70mm x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N40 |
| 111 | 19.0mm x 19.0mm x 6.40mm Thick, Double Countersunk Hole Accepts #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 112 | 19.0mm x 19.0mm x 6.40mm Thick, Double Countersunk W/ Hole To Accept A #6 Screw, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 113 | 25.40mm x 6.40mm x 12.70mm Thick, Countersunk 2x Thru The Side For #6 Screw, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 114 | 25.40mm x 12.70mm x 3.20mm Thick, With 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, South Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 115 | 25.40mm x 12.70mm x 3.20mm Thick, With 2 Countersunk Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, North Pole Facing Out, Countersunk Block Neodymium Magnet, N42 |
| 116 | 25.40mm x 12.70mm x 12.70mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N42 |
| 117 | 25.40mm x 25.40mm x 4.80mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 118 | 25.40mm x 25.40mm x 12.70mm Thick, Counterbored Hole Accepts #10 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 119 | 25.40mm x 25.40mm x 12.70mm Thick, Double Countersunk W/ Hole To Accept #8 Screws, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 120 | 38.10mm x 12.70mm x 6.40mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N40 |
| 121 | 38.10mm x 19.0mm x 9.50mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 122 | 50.80mm x 12.70mm x 6.40mm Thick, Double Countersunk W/ Holes To Accept #6 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
| 123 | 50.80mm x 25.40mm x 6.40mm Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N42 |
| 124 | 50.80mm x 25.40mm x 12.70mm Thick, Double Countersunk W/ Holes To Accept #8 Screws, Nickel Plated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N35 |
| 125 | 50.80mm x 25.40mm x 12.70mm Thick, Double Countersunk W/ Holes To Accept #8 Screws, Black Epoxy Resin Coated, Magnetized Thru Thickness, Countersunk Block Neodymium Magnet, N45 |
Neodymium Magnets Performance Datasheet
| Grade | Remanence (Br) mT ┃ Gs | Coercive Force (Hcb) kA/m ┃ Oe | Intrinsic Coercivity (Hcj) kA/m ┃ Oe | Max. Energy Product (BH)max kJ/m3 ┃ MGOe | Working Temp. ℃ | Curie Temp. ℃ |
|---|---|---|---|---|---|---|
| N27 | 1,020-1,090 ┃ 10,200-10,900 | ≥796 ┃ ≥10,000 | ≥955 ┃ ≥12,000 | 199-231 ┃ 25-29 | ≤80 | 310 |
| N30 | 1,080-1,150 ┃ 10,800-11,500 | ≥796 ┃ ≥10,000 | ≥955 ┃ ≥12,000 | 223-255 ┃ 28-32 | ||
| N33 | 1,130-1,180 ┃ 11,300-11,800 | ≥836 ┃ ≥10,500 | ≥955 ┃ ≥12,000 | 247-270 ┃ 31-34 | ||
| N35 | 1,180-1,230 ┃ 11,800-12,300 | ≥868 ┃ ≥10,900 | ≥955 ┃ ≥12,000 | 263-287 ┃ 33-36 | ||
| N38 | 1,220-1,280 ┃ 12,200-12,800 | ≥899 ┃ ≥11,300 | ≥955 ┃ ≥12,000 | 287-310 ┃ 36-39 | ||
| N40 | 1,260-1,310 ┃ 12,600-13,100 | ≥923 ┃ ≥11,600 | ≥955 ┃ ≥12,000 | 302-326 ┃ 38-41 | ||
| N42 | 1,280-1,340 ┃ 12,800-13,400 | ≥923 ┃ ≥11,600 | ≥955 ┃ ≥12,000 | 318-342 ┃ 40-43 | ||
| N45 | 1,320-1,370 ┃ 13,200-13,700 | ≥876 ┃ ≥11,000 | ≥955 ┃ ≥12,000 | 342-366 ┃ 43-46 | ||
| N48 | 1,360-1,420 ┃ 13,600-14,200 | ≥836 ┃ ≥10,500 | ≥876 ┃ ≥11,000 | 358-390 ┃ 45-48 | ||
| N50 | 1,390-1,450 ┃ 13,900-14,500 | ≥836 ┃ ≥10,500 | ≥876 ┃ ≥11,000 | 374-406 ┃ 47-51 | ||
| N52 | 1,420-1,480 ┃ 14,200-14,800 | ≥796 ┃ ≥10,000 | ≥876 ┃ ≥11,000 | 390-422 ┃ 49-53 | ||
| N35M | 1,180-1,230 ┃ 11,800-12,300 | ≥868 ┃ ≥10,900 | ≥1,114 ┃ ≥14,000 | 263-287 ┃ 33-36 | ≤100 | 320 |
| N38M | 1,220-1,280 ┃ 12,200-12,800 | ≥899 ┃ ≥11,300 | ≥1,114 ┃ ≥14,000 | 287-310 ┃ 36-39 | ||
| N40M | 1,260-1,310 ┃ 12,600-13,100 | ≥923 ┃ ≥11,600 | ≥1,114 ┃ ≥14,000 | 302-326 ┃ 38-41 | ||
| N42M | 1,280-1,340 ┃ 12,800-13,400 | ≥923 ┃ ≥11,600 | ≥1,114 ┃ ≥14,000 | 318-342 ┃ 40-43 | ||
| N45M | 1,340-1,390 ┃ 13,400-13,900 | ≥876 ┃ ≥11,000 | ≥1,114 ┃ ≥14,000 | 342-366 ┃ 43-46 | ||
| N48M | 1,360-1,420 ┃ 13,600-14,200 | ≥876 ┃ ≥11,000 | ≥1,114 ┃ ≥14,000 | 366-390 ┃ 46-49 | ||
| N50M | 1,390-1,450 ┃ 13,900-14,500 | ≥1,035 ┃ ≥13,000 | ≥1,114 ┃ ≥14,000 | 374-406 ┃ 47-51 | ||
| N15H | 810-960 ┃ 8,100-9,600 | ≥597 ┃ ≥7,500 | ≥1,353 ┃ ≥17,000 | 127-159 ┃ 16-20 | ≤120 | 330 |
| N25H | 900-1,080 ┃ 9,000-10,800 | ≥756 ┃ ≥9,500 | ≥1,353 ┃ ≥17,000 | 159-207 ┃ 20-26 | ||
| N27H | 1,020-1,060 ┃ 10,200-10,600 | ≥764 ┃ ≥9,600 | ≥1,353 ┃ ≥17,000 | 199-215 ┃ 25-27 | ||
| N30H | 1,080-1,150 ┃ 10,800-11,500 | ≥796 ┃ ≥10,000 | ≥1,353 ┃ ≥17,000 | 223-254 ┃ 28-32 | ||
| N33H | 1,130-1,180 ┃ 11,300-11,800 | ≥836 ┃ ≥10,500 | ≥1,353 ┃ ≥17,000 | 247-270 ┃ 31-34 | ||
| N35H | 1,180-1,230 ┃ 11,800-12,300 | ≥868 ┃ ≥10,900 | ≥1,353 ┃ ≥17,000 | 263-287 ┃ 33-36 | ||
| N38H | 1,220-1,280 ┃ 12,200-12,800 | ≥899 ┃ ≥11,300 | ≥1,353 ┃ ≥17,000 | 287-310 ┃ 36-39 | ||
| N40H | 1,260-1,310 ┃ 12,600-13,100 | ≥923 ┃ ≥11,600 | ≥1,353 ┃ ≥17,000 | 302-326 ┃ 38-41 | ||
| N42H | 1,280-1,340 ┃ 12,800-13,400 | ≥923 ┃ ≥11,600 | ≥1,353 ┃ ≥17,000 | 318-342 ┃ 40-43 | ||
| N45H | 1,330-1,390 ┃ 13,300-13,900 | ≥923 ┃ ≥11,600 | ≥1,353 ┃ ≥17,000 | 342-366 ┃ 43-46 | ||
| N48H | 1,360-1,420 ┃ 13,600-14,200 | ≥923 ┃ ≥11,600 | ≥1,274 ┃ ≥16,000 | 366-390 ┃ 46-49 | ||
| N27SH | 1,020-1,060 ┃ 10,200-10,600 | ≥780 ┃ ≥9,800 | ≥1,592 ┃ ≥20,000 | 199-215 ┃ 25-27 | ≤150 | 340 |
| N30SH | 1,080-1,140 ┃ 10,800-11,400 | ≥804 ┃ ≥10,100 | ≥1,592 ┃ ≥20,000 | 223-254 ┃ 28-32 | ||
| N33SH | 1,140-1,190 ┃ 11,400-11,900 | ≥836 ┃ ≥10,500 | ≥1,592 ┃ ≥20,000 | 247-270 ┃ 31-34 | ||
| N35SH | 1,180-1,230 ┃ 11,800-12,300 | ≥868 ┃ ≥10,900 | ≥1,592 ┃ ≥20,000 | 263-287 ┃ 33-36 | ||
| N38SH | 1,220-1,280 ┃ 12,200-12,800 | ≥899 ┃ ≥11,300 | ≥1,592 ┃ ≥20,000 | 287-310 ┃ 36-39 | ||
| N40SH | 1,260-1,310 ┃ 12,600-13,100 | ≥923 ┃ ≥11,600 | ≥1,592 ┃ ≥20,000 | 302-326 ┃ 38-41 | ||
| N42SH | 1,280-1,340 ┃ 12,800-13,400 | ≥923 ┃ ≥11,600 | ≥1,592 ┃ ≥20,000 | 318-342 ┃ 40-43 | ||
| N45SH | 1,330-1,390 ┃ 13,300-13,900 | ≥923 ┃ ≥11,600 | ≥1,592 ┃ ≥20,000 | 342-366 ┃ 43-46 | ||
| N28UH | 1,030-1,090 ┃ 10,300-10,900 | ≥780 ┃ ≥9,800 | ≥1,990 ┃ ≥25,000 | 207-231 ┃ 26-29 | ≤180 | 350 |
| N30UH | 1,090-1,140 ┃ 10,900-11,400 | ≥812 ┃ ≥10,200 | ≥1,990 ┃ ≥25,000 | 223-247 ┃ 28-31 | ||
| N33UH | 1,130-1,170 ┃ 11,300-11,700 | ≥852 ┃ ≥10,700 | ≥1,990 ┃ ≥25,000 | 247-263 ┃ 31-33 | ||
| N35UH | 1,180-1,220 ┃ 11,800-12,200 | ≥868 ┃ ≥10,900 | ≥1,990 ┃ ≥25,000 | 263-287 ┃ 33-36 | ||
| N38UH | 1,220-1,270 ┃ 12,200-12,700 | ≥899 ┃ ≥11,300 | ≥1,990 ┃ ≥25,000 | 287-310 ┃ 36-39 | ||
| N28EH | 1,030-1,090 ┃ 10,300-10,900 | ≥780 ┃ ≥9,800 | ≥2,388 ┃ ≥30,000 | 207-231 ┃ 26-29 | ≤200 | 380 |
| N30EH | 1,080-1,130 ┃ 10,800-11,300 | ≥812 ┃ ≥10,200 | ≥2,388 ┃ ≥30,000 | 223-247 ┃ 28-31 | ||
| N33EH | 1,130-1,170 ┃ 11,300-11,700 | ≥852 ┃ ≥10,700 | ≥2,388 ┃ ≥30,000 | 247-263 ┃ 31-33 | ||
| N35EH | 1,180-1,220 ┃ 11,800-12,200 | ≥868 ┃ ≥10,900 | ≥2,388 ┃ ≥30,000 | 263-287 ┃ 33-36 | ||
| N38EH | 1,220-1,270 ┃ 12,200-12,700 | ≥915 ┃ ≥11,500 | ≥2,388 ┃ ≥30,000 | 279-310 ┃ 35-39 | ||
| N28AH | 1,020-1,090 ┃ 10,200-10,900 | ≥780 ┃ ≥9,800 | ≥2,706 ┃ ≥34,000 | 199-231 ┃ 25-29 | ≤230 | 380 |
| N30AH | 1,070-1,130 ┃ 10,700-11,300 | ≥812 ┃ ≥10,200 | ≥2,706 ┃ ≥34,000 | 215-247 ┃ 27-31 | ||
| N33AH | 1,110-1,170 ┃ 11,100-11,700 | ≥820 ┃ ≥10,500 | ≥2,706 ┃ ≥34,000 | 239-271 ┃ 30-34 | ||
| N35AH | 1,170-1,220 ┃ 11,700-12,200 | ≥883 ┃ ≥11,100 | ≥2,706 ┃ ≥34,000 | 263-287 ┃ 33-36 |
SI and CGS Unit Conversion for Magnetism Quantity
| Quantity | Symbol | SI Unit | CGS Unit | Unit Conversion |
| Remanence | Br | T | Gs | 1T=10kGs |
| Coercive Force | Hcb | kA/m | Oe | 1kA/m=4πOe≈12.57Oe |
| Intrinsic Coercivity | Hcj, iHc | kA/m | Oe | 1kA/m=4πOe≈12.57Oe |
| Max. Energy Product | BHmax | kJ/m3 | MGOe | 1kJ/m3=4π/102MGOe≈0.126MGOe |
| Magnetic Flux | Φ | Wb,Vs | Mx | 1Wb=1Vs=108Mx |
| Magnetization Intensity | M | T | Gs | 1T=10kGs |
| Magnetic Field Intensity | H | kA/m | Oe | 1kA/m=4πOe≈12.57Oe |
| Magnetic Induction Intensity | B | T | Gs | 1T=10kGs |
Neodymium Magnets Magnetization Directions
Neodymium Magnets Surface Treatment (Plating & Coating)
| Surface Treatment | Process | Thickness | Color | SST | PCT |
| （μm） | （Hours） | （Hours） | |||
| Nickel | Ni | 10 ～ 20 | Bright Silver | ＞ 24 ～ 72 | ＞ 24 ～ 72 |
| Ni+Cu+Ni | |||||
| Black Nickel | Ni+Cu+Ni | 10 ～ 20 | Bright Black | ＞ 48 ～ 96 | ＞ 48 |
| Cr3+Zinc | Zn | 5 ～ 8 | Bright Blue | ＞ 16 ～ 48 | －－－ |
| Cr3+Zn | Shining Color | ＞ 36 ～ 72 | |||
| Sn | Ni+Cu+Ni+Sn | 10 ～ 25 | Silver | ＞ 36 ～ 72 | ＞ 48 |
| Au | Ni+Cu+Ni+Au | 10 ～ 15 | Gold | ＞ 12 | ＞ 48 |
| Ag | Ni+Cu+Ni+Ag | 10 ～ 15 | Silver | ＞ 12 | ＞ 48 |
| Epoxy | Epoxy | 10 ～ 20 | Black/ Grey | ＞ 96 | －－－ |
| Ni+Cu+Epoxy | 15 ～ 30 | ＞ 120 | －－－ | ||
| Zn+Epoxy | 15 ～ 25 | ＞ 120 | －－－ | ||
| Passivation | －－－ | 1 ～ 3 | Dark Grey | Temporary Protection | －－－ |
| Phosphate | －－－ | 1 ～ 3 | Dark Grey | Temporary Protection | －－－ |
Neodymium Magnets Packaging
– Inner packaging
– Standard Air and Express Packaging
– Standard Sea Packaging
Neodymium Magnets Shipping Methods
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Typical Shapes of Neodymium Magnets
For more details about block neodymium magnets with countersunk holes, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
