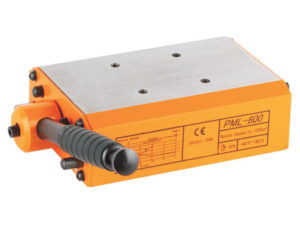

PML permanent magnetic tapping chucks
FOB Price: Get Latest Price
Min.Order Quantity: 50 Piece
Supply Ability: 50,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Production Lead Time: About 7-25 days
Relative Products
PML Permanent Magnetic Tapping Chucks Advantages
- Compact design: Light weight; Easy for operation.
- Using permanenet magnet; No electric power needed; Safe for operation.
- High safety coefficient: maximum pull-off force is 2.5-3.5 times as big as rated capacity.
- To prevent from wrong operation with safety device.
- Maintenance – free; Long lifetime
PML Permanent Magnetic Tapping Chucks Applications
Used to fix the tapping machine.
PML Permanent Magnetic Tapping Chucks Technical Data
| Model No | Rated Capacity (kgs) | Size (mm) | Maximum Pull-off Force (kgf) | Net Weight (kgs) | |||
| L | B | H | R | ||||
| PML-400 | 400 | 153 | 122 | 65 | 106 | 1,050 | 9 |
| PML-600 | 600 | 170 | 130 | 70 | 150 | 1,550 | 13 |
| PML-800 | 800 | 195 | 162 | 74 | 216 | 2,100 | 18 |
| PML-1000 | 1000 | 300 | 265 | 88 | 451 | 3,500 | 48 |
| PML-2000 | 2000 | 300 | 265 | 88 | 451 | 6,000 | 52 |
PML Permanent Magnetic Tapping Chucks Shipping Methods
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.

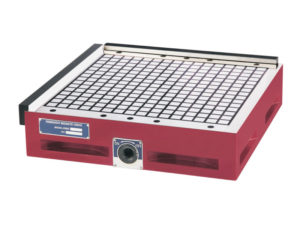

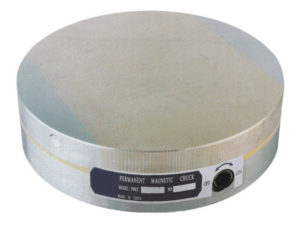

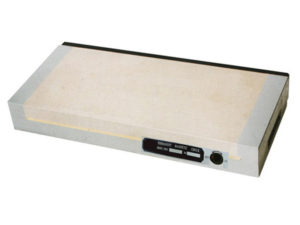

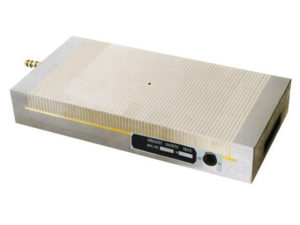

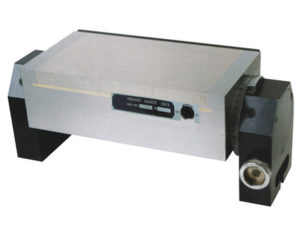

Permanent Magnetic Chucks Series
For more details about PML series magnetic tapping chucks, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
