PMSC permanent magnetic chucks
FOB Price: Get Latest Price
Min.Order Quantity: 50 Piece
Supply Ability: 50,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Production Lead Time: About 7-25 days
Relative Products
PMSC Permanent Magnetic Chucks Applications
Applied in metal machining process, such as CNC machining, CNC engraving, milling, grinding and other mechanical processing equipment.
PMSC Permanent Magnetic Chucks Technical Data
- PMSC Permanent Magnetic Chucks (18×18)
| Model No | Size (mm) | Magnetic Block Qty (pcs) | Attraction/Magnetic Block (kgf) | Total Magnetic Attraction (kgf) | ||
| A | B | H | ||||
| PMSC-2025B | 200 | 256 | 50 | 56 | 25 | 1,400 |
| PMSC-2525A | 253 | 252 | 90 | 90 | 25 | 2,250 |
| PMSC-2040A | 200 | 400 | 80 | 136 | 25 | 3,400 |
| PMSC-3030A | 300 | 300 | 90 | 132 | 25 | 3,300 |
| PMSC-3040A | 300 | 400 | 90 | 176 | 25 | 4,400 |
| PMSC-3040B | 293 | 376 | 60 | 132 | 25 | 3,300 |
| PMSC-30100A | 300 | 1000 | 90 | 352 | 25 | 8,800 |
| PMSC-3060A | 300 | 600 | 90 | 275 | 25 | 6,875 |
| PMSC-3535A | 350 | 350 | 90 | 183 | 25 | 4,575 |
| PMSC-4040A | 400 | 400 | 90 | 240 | 25 | 6,000 |
| PMSC-4050A | 400 | 500 | 90 | 300 | 25 | 7,500 |
| PMSC-4060A | 400 | 600 | 90 | 375 | 25 | 9,375 |
| PMSC-4080A | 400 | 800 | 90 | 480 | 25 | 12,000 |
| PMSC-5050A | 500 | 500 | 110 | 400 | 25 | 10,000 |
| PMSC-5060A | 500 | 600 | 110 | 500 | 25 | 12,500 |
| PMSC-5080A | 500 | 800 | 110 | 640 | 25 | 16,000 |
| PMSC-50100A | 500 | 1000 | 110 | 800 | 25 | 20,000 |
| PMSC-6080A | 600 | 800 | 110 | 768 | 25 | 19,200 |
- PMSC Permanent Magnetic Chucks (12×12)
| Model No | Size (mm) | Magnetic Block Qty (pcs) | Attraction/Magnetic Block (kgf) | Total Magnetic Attraction (kgf) | ||
| A | B | H | ||||
| PMSC-1530C | 150 | 300 | 55 | 116 | 15 | 1,740 |
| PMSC-1540C | 150 | 400 | 55 | 184 | 15 | 2,760 |
| PMSC-2040C | 200 | 400 | 65 | 207 | 15 | 3,105 |
| PMSC-3040C | 300 | 400 | 65 | 368 | 15 | 5,520 |
PMSC Permanent Magnetic Chucks Pictures
-

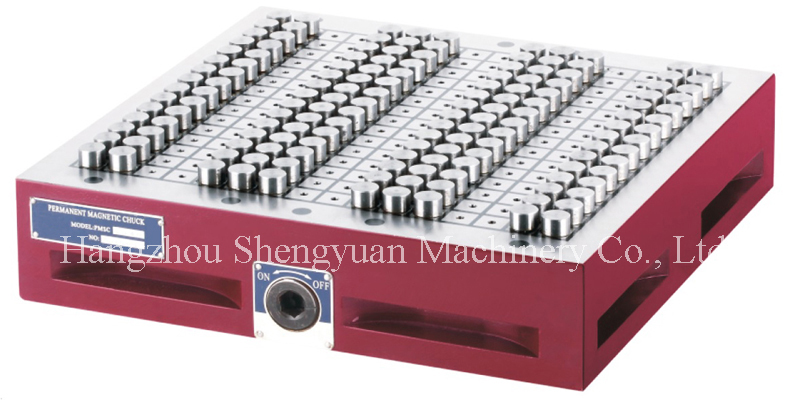

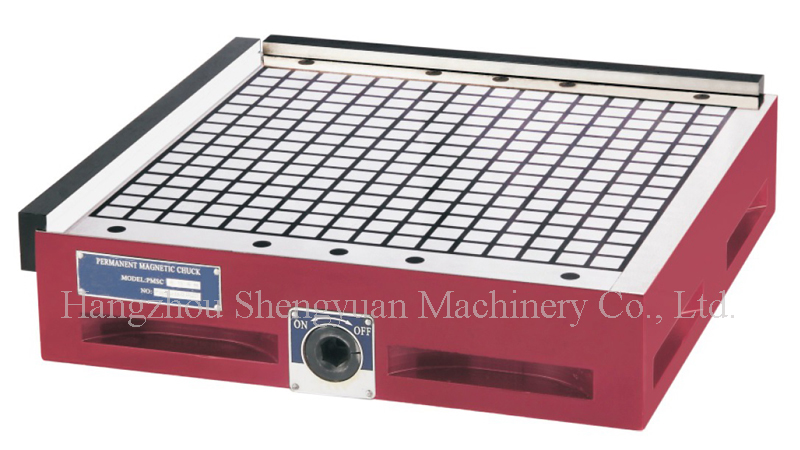

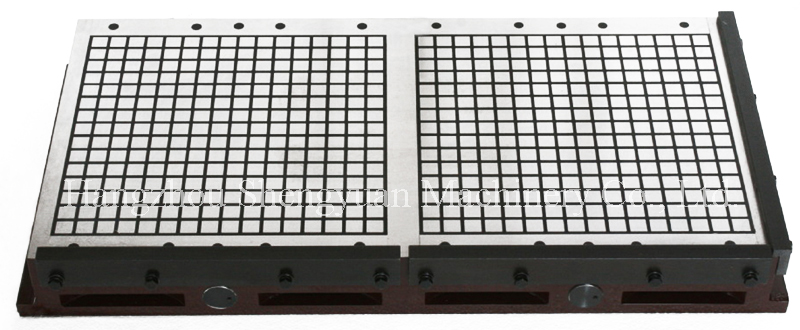

PMSC Permanent Magnetic Chucks (18×18)
-

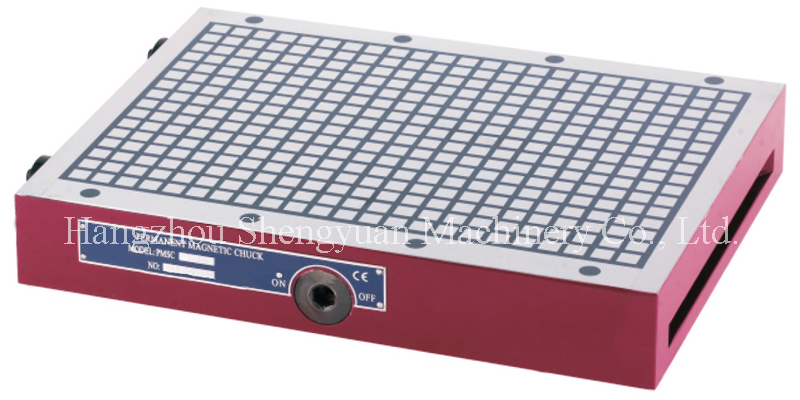

PMSC Permanent Magnetic Chuck (12×12)
PMSC Permanent Magnetic Chucks Shipping Methods
International Express (TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Permanent Magnetic Chucks Series
For more details about PMSC series magnetic chucks, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
