Ferrite magnetic clips (CK series)
Ferrite magnetic clip’s diameter is Ø36mm and the attraction is 6.8kgs. It uses ferrite magnet to attract on the fridge, metal bulletin board or other ferromagnetic metal surfaces and clamps the object on it.
FOB Price: US $0.1 – 5 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Ferrite magnetic clips | Type: Permanent magnets |
| Components: Ferrite magnet, metal shell and clip | Coating: Cloth wrapped, epoxy resin coating, chrome, zinc or nickel plating |
| Permanent Magnet Material: Ferrite magnet | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
Technical Data for CK Series (Ferrite Magnetic Clips)

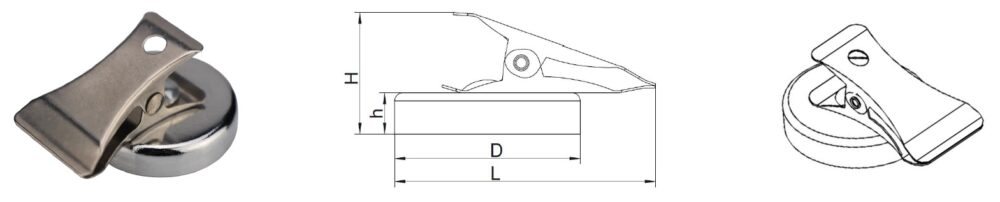

Model 1
| Model | D (mm) | H (mm) | h (mm) | L (mm) | Net Weight (gs) | A4 paper holdable on white board |
|---|---|---|---|---|---|---|
| NCK36 | 36 | 23.2 | 7.4 | 50.5 | 45 | 140 pieces |

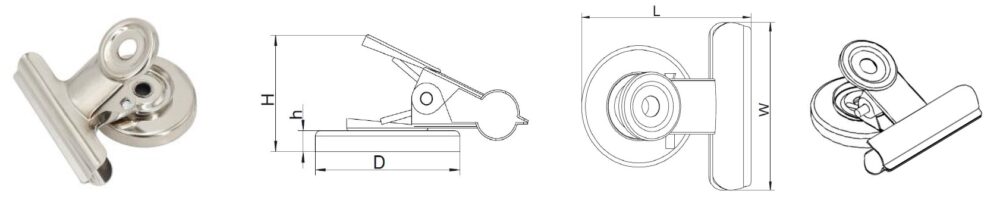

Model 2
| Model | D (mm) | H (mm) | h (mm) | L (mm) | W (mm) | Net Weight (gs) | A4 paper holdable on white board |
|---|---|---|---|---|---|---|---|
| NCK29x30 | 29 | 22.5 | 4 | 38 | 30 | 15 | 32 pieces |
| NCK29x40 | 29 | 26 | 4 | 43 | 40 | 17 | 32 pieces |
Packaging for CK Series (Ferrite Magnetic Clips)
Shipping Methods for CK Series (Ferrite Magnetic Clips)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about ferrite magnetic clips, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
