Neodymium pot magnets with female threads (SH series)
Neodymium pot magnet with a center threaded hole is used to connect the object with male threads or be fixed at the bottom by male threads and attract the ferromagnetic object at the neodymium magnet side.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium pot magnets with female threads | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and nut | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
| Application: Industrial magnets |

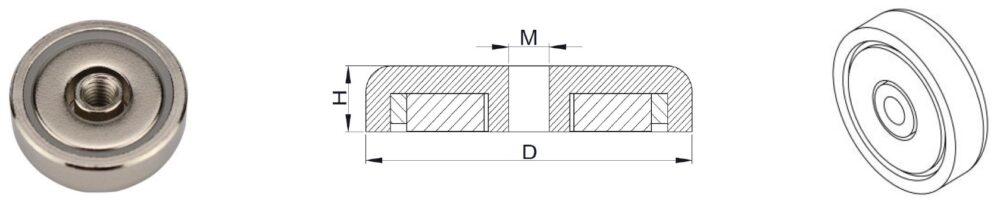

Technical Data for SH Series (Neodymium Pot Magnets with Female Threads)
| Model | D (mm) | H (mm) | M (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|
| NSH16 | 16 | 5 | M3 | 4 | 7 |
| NSH20 | 20 | 7 | M4 | 8 | 14 |
| NSH25 | 25 | 7.7 | M5 | 17 | 25 |
| NSH32 | 32 | 7.7 | M5 | 27 | 44 |
| NSH36 | 36 | 7.5 | M6 | 36 | 55 |
| NSH42 | 42 | 8.6 | M6 | 50 | 86 |
| NSH48 | 48 | 10.6 | M8 | 70 | 132 |
| CSH60 | 60 | 12 | M8 | 140 | 229 |
| CSH75 | 75 | 15 | M10 | 220 | 464 |
Packaging for SH Series (Neodymium Pot Magnets with Female Threads)
Shipping Methods for SH Series (Neodymium Pot Magnets with Female Threads)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium pot magnet with female threads, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
