Neodymium pot magnet with a bolt in the center (SC series)
Neodymium pot magnet with a bolt or called neodymium pot magnet with male thread has a protrudent bolt in the center to connect the object with female thread or be fixed by female thread and attract the ferromagnetic object at the neodymium magnet side. NC series pot magnets can also be used as fishing magnets when combined with SD series – screw SC model and SD model together and use a rope tied on the space between them.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium pot magnet with a bolt | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and bolt | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
| Application: Industrial magnets |
Technical Data for SC Series (Neodymium Pot Magnet with A Bolt)
-

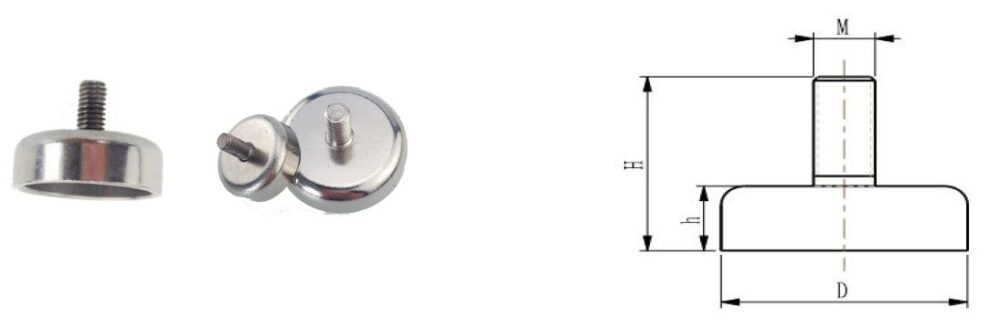

Metal shells made by stamping process
| Model | D (mm) | M (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|
| NSC10 | 10 | M3 | 14 | 5 | 2 | 4 |
| NSC12 | 12 | M3 | 14 | 5 | 4 | 5 |
| NSC16 | 16 | M4 | 13.2 | 5 | 8 | 8 |
| NSC20 | 20 | M4 | 16 | 7 | 12 | 17 |
| NSC25 | 25 | M5 | 17 | 8 | 23 | 30 |
| NSC32 | 32 | M6 | 18.5 | 8 | 34 | 50 |
| NSC36 | 36 | M6 | 18 | 8 | 50 | 62 |
| NSC42 | 42 | M6 | 18 | 8.6 | 72 | 89 |
-

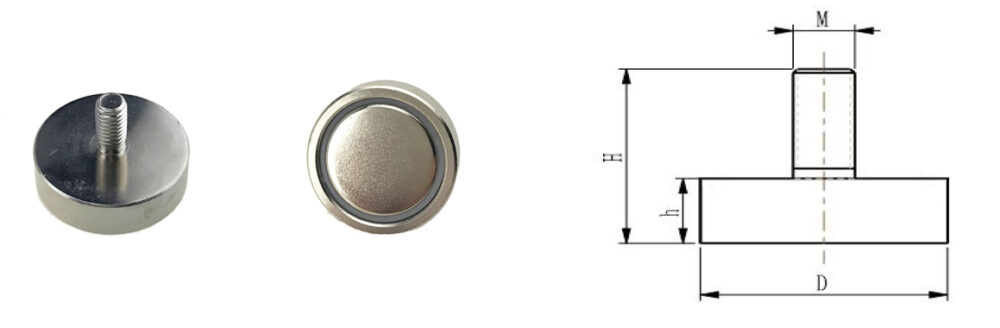

Metal shells made by machining process
| Model | D (mm) | M (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|
| CSC48 | 48 | M8 | 24 | 11 | 81 | 152 |
| CSC60 | 60 | M8 | 28 | 15 | 160 | 325 |
| CSC75 | 75 | M10 | 35 | 18 | 250 | 620 |
Fishing Ropes for Magnet Fishing (when used as fishing magnets combined with SD series)
| Model | Rope OD (mm) | Rope Length (m) | Load-Bearing (kgs) |
|---|---|---|---|
| D4mm*10m | 4 | 10 | 150 |
| D4mm*20m | 4 | 20 | 150 |
| D6mm*10m | 6 | 10 | 260 |
| D6mm*20m | 6 | 20 | 260 |
| D6mm*30m | 6 | 30 | 260 |
| D8mm*10m | 8 | 10 | 360 |
| D8mm*20m | 8 | 20 | 360 |
| D8mm*30m | 8 | 30 | 360 |
Packaging for SC Series (Neodymium Pot Magnet with A Bolt)
Shipping Methods for SC Series (Neodymium Pot Magnet with A Bolt)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium pot magnet with a bolt in the center, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
