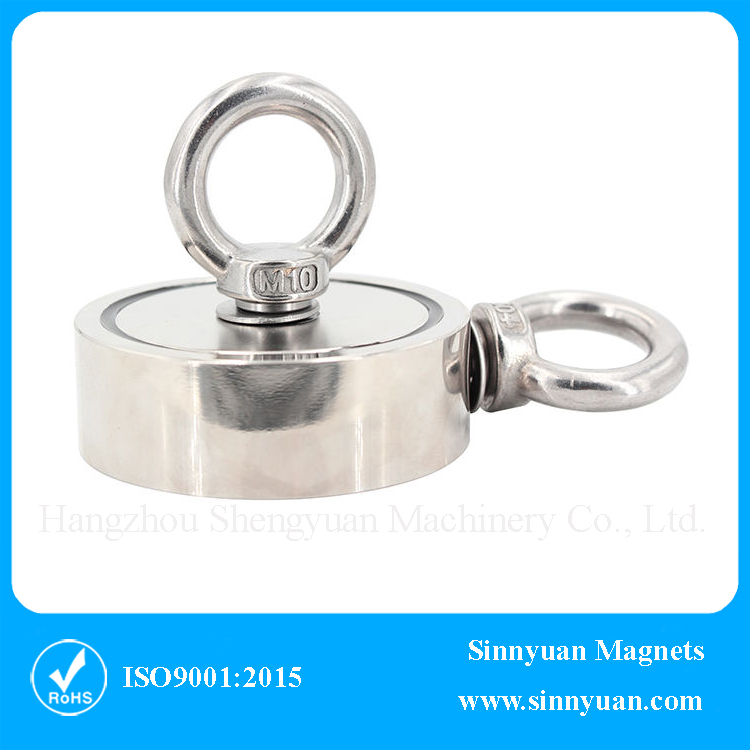

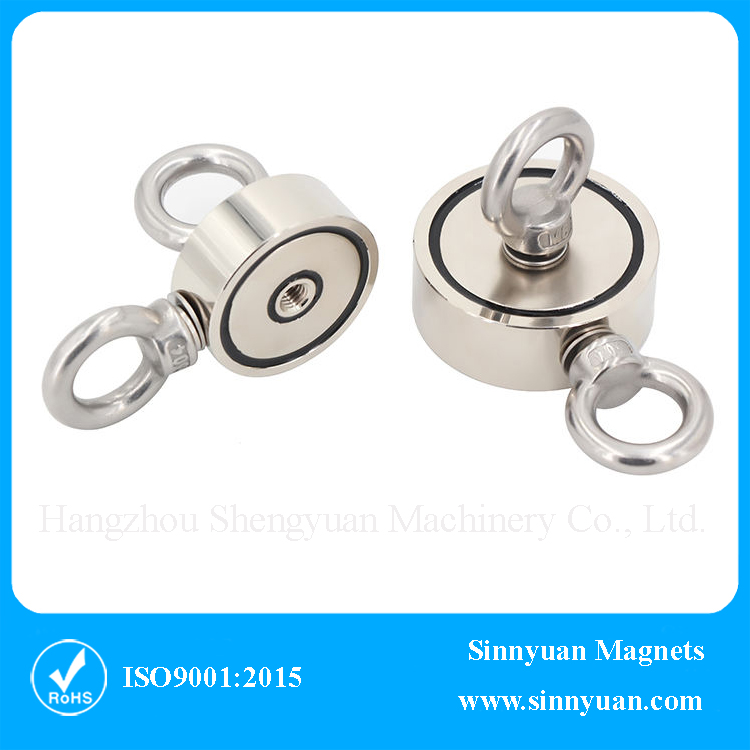

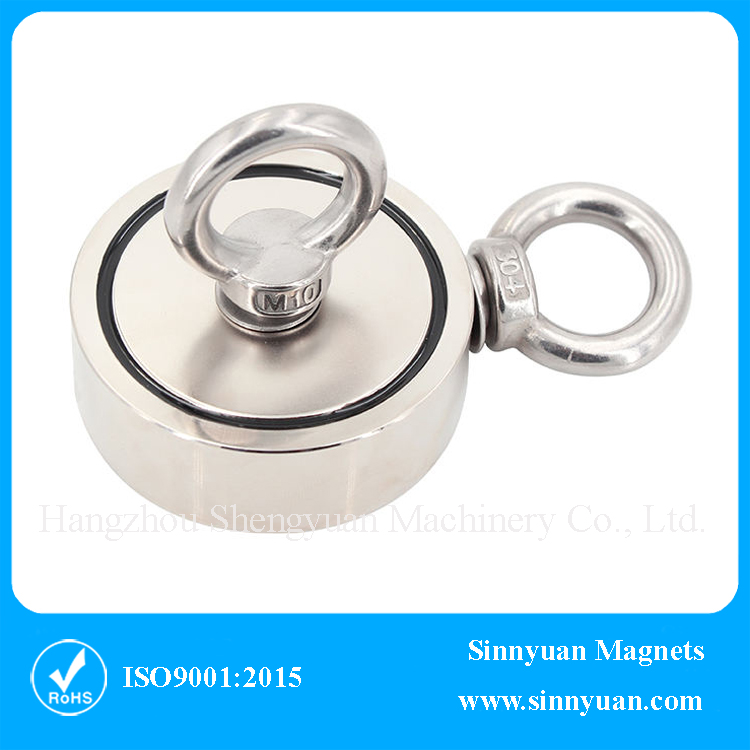

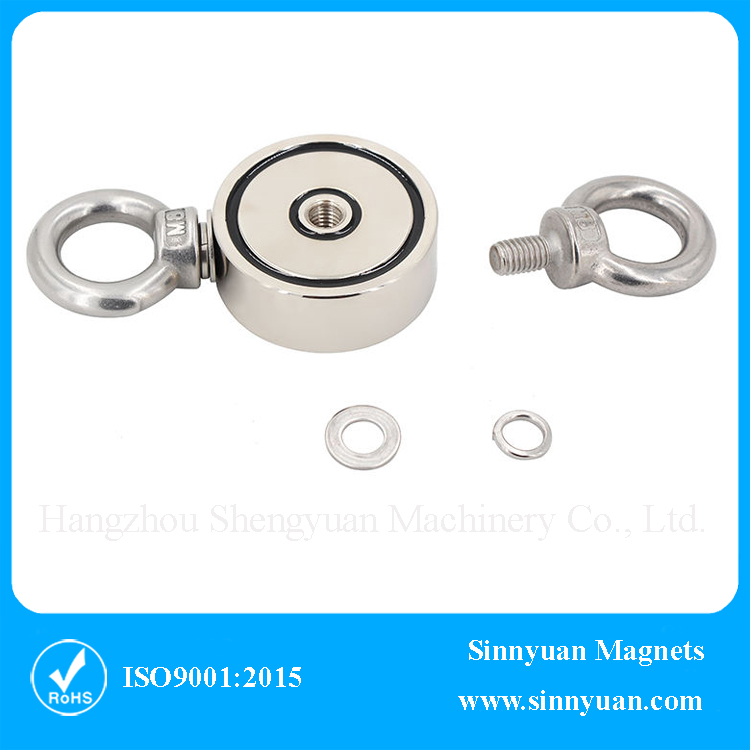

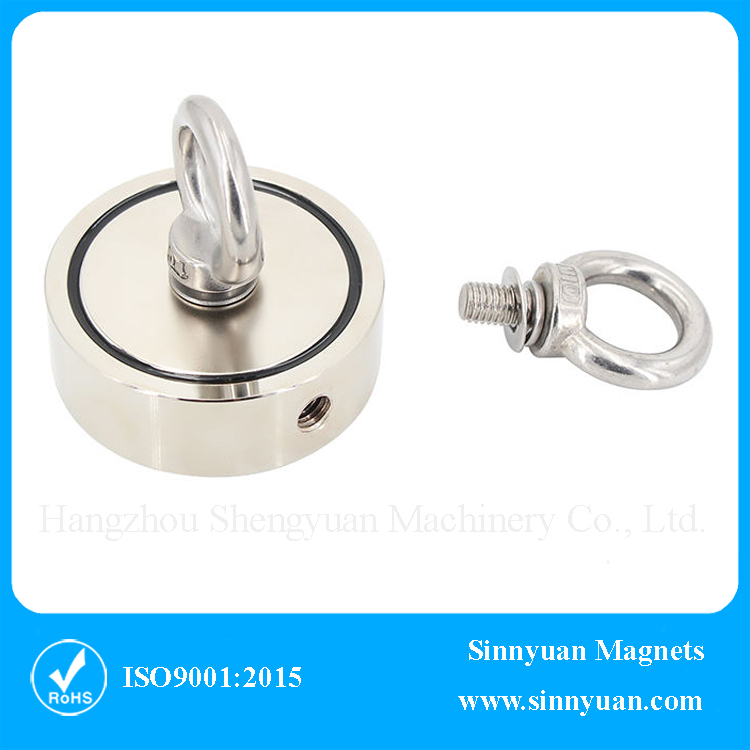

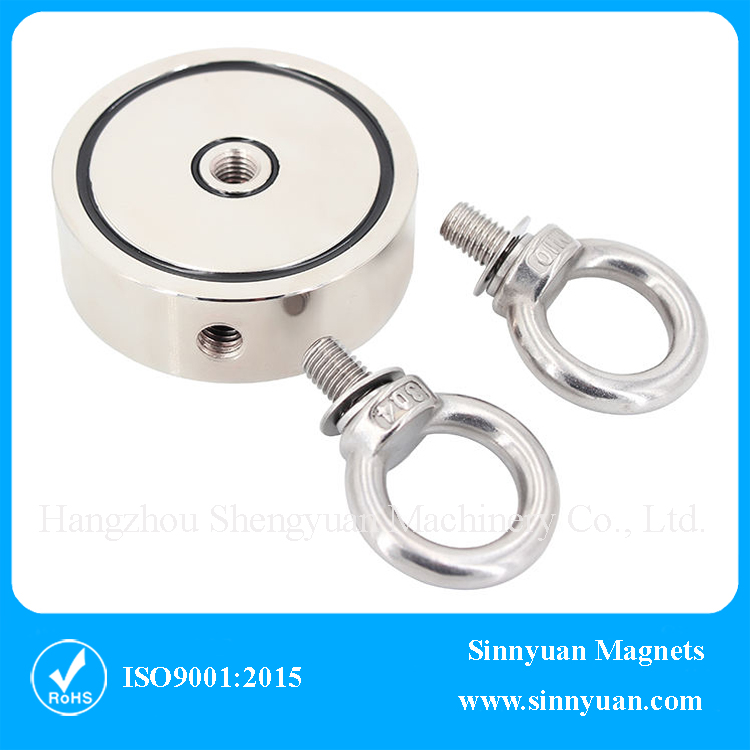

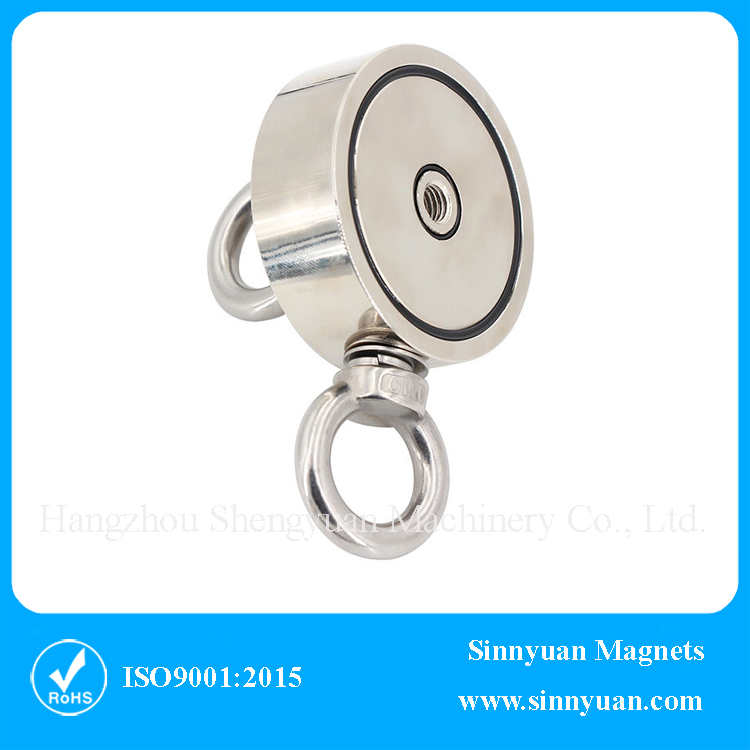

Neodymium Fishing Magnets (SM-C Series)
Neodymium fishing magnets (also called salvage magnets) are heavy-duty NdFeB (Neodymium-Iron-Boron) rare-earth pot magnets specially engineered to retrieve ferrous metal objects underwater in rivers, lakes, canals, seaports and ponds.
SM series has two types of fishing magnets: single-sided (SM-A & SM-B) and double-sided (SM-C, SM-D & SM-E). The single-sides fishing magnet’ magnetic force only concentrates on the bottom flat surface and its side/top magnetic field is shielded by steel cup. Double-sided fishing magnets use two independent NdFeB cores, strong suction on top and bottom faces simultaneously, which makes the hit rate higher when dragging along riverbed, even if one side misses metal, the other may catch items.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 500,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium pot magnets with hanging rings | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and hanging ring | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
Technical Data for Neodymium Fishing Magnets (SM-C Series)

| Model | D (mm) | h (mm) | H (mm) | L (mm) | d (mm) | d1 (mm) | M (mm) | Attraction | Net weight (gs) |
|---|---|---|---|---|---|---|---|---|---|
| CSM48C | 48 | 18 | 58 | 83 | 19.5 | 34.5 | M8 | 70kgs/160lbs | 211 |
| CSM60C | 60 | 22 | 66 | 95 | 19.5 | 34.5 | M8 | 135kgs/300lbs | 551 |
| CSM67C | 67 | 25 | 75 | 102 | 25 | 41.5 | M10 | 170kgs/380lbs | 795 |
| CSM75C | 75 | 25 | 77 | 110 | 25 | 41.5 | M10 | 220kgs/500lbs | 945 |
| CSM94C | 94 | 28 | 85 | 129 | 25 | 41.5 | M10 | 300kgs/650lbs | 1,600 |
| CSM116C | 116 | 32 | 92 | 160 | 29 | 47 | M12 | 450kgs/1,000lbs | 2,745 |
| CSM136C | 136 | 34 | 92 | 190 | 29 | 47 | M12 | 600kgs/1,350lbs | 3,580 |
Fishing Ropes for Magnet Fishing (when used as fishing magnets)

| Model | Rope OD (mm) | Rope Length (m) | Load-Bearing (kgs) |
|---|---|---|---|
| D4mm*10m | 4 | 10 | 150 |
| D4mm*20m | 4 | 20 | 150 |
| D6mm*10m | 6 | 10 | 260 |
| D6mm*20m | 6 | 20 | 260 |
| D6mm*30m | 6 | 30 | 260 |
| D8mm*10m | 8 | 10 | 360 |
| D8mm*20m | 8 | 20 | 360 |
| D8mm*30m | 8 | 30 | 360 |
Packaging for Neodymium Fishing Magnets (SM-C Series)

Shipping Methods for Neodymium Fishing Magnets (SM-C Series)

International Express (TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment

For more details about neodymium fishing magnets (SM-C series), please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
