Ferrite magnetic swivel hooks (CG series)
Ferrite magnetic swivel hooks use the rotatable hooks to hang the objects. Ferrite magnets‘ cost is much lower compared to neodymium magnets‘ but can be used for many daily applications.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Ferrite magnetic swivel hooks | Type: Permanent magnets |
| Components: Ferrite magnets, metal shell and swivel hook | Coating: Epoxy resin coating, chrome, zinc or nickel plating |
| Permanent Magnet Material: Ferrite magnet | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |

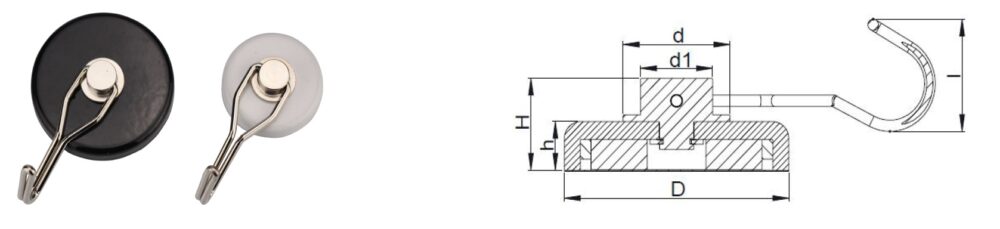

Technical Data for CG Series (Ferrite Magnetic Swivel Hooks)
| Model | D (mm) | d (mm) | d1 (mm) | H (mm) | h (mm) | I (mm) | Vertical Attraction (Kgs) | Side Attraction (Kgs) | N.W. (gs) |
|---|---|---|---|---|---|---|---|---|---|
| NCG36 | 36 | 16 | 10.8 | 14.5 | 8.3 | 20 | 4.2 | 1.7 | 50 |
| NCG52 | 52 | 16 | 10.8 | 14.5 | 8.3 | 20 | 7.4 | 2.5 | 80 |
Packaging for CG Series (Ferrite Magnetic Swivel Hooks)
Shipping Methods for CG Series (Ferrite Magnetic Swivel Hooks)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about ferrite magnetic swivel hooks, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
