Rubber covered pot magnets with metal handles (NRB series)
Rubber covered or rubber coated pot magnet with a metal handle uses neodymium magnet to attract on the flat surface or attract the object. It is optional that purchasing the handle or not and screw or nut in the center.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Rubber covered pot magnets with metal handles | Type: Permanent magnets |
| Components: Neodymium magnet, rubber cover and metal handle | Coating: Rubber covered |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: Shown in the technical data chart below or customized |
| Magnetization Direction: through thickness direction |
Application: Rubber covered pot magnets can be used to fix all kinds of film, car dome light, doors, cabinet doors, the ceiling, signs, banners, mating parts, fixtures and lighting, etc.
Technical Data for NRB Series (Rubber Covered Pot Magnets with Metal Handles)
-

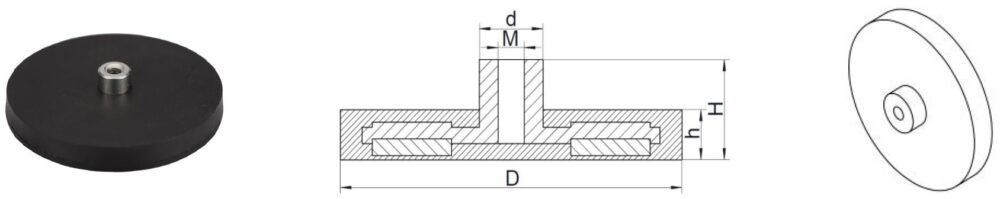

Model 1
| MODEL | D (mm) | d (mm) | M (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|---|
| NRBA22 | 22 | 8 | M4 | 11.5 | 6 | 5 | 12 |
| NRBA34 | 34 | 8 | M4 | 14 | 6 | 6 | 22 |
| NRBA43 | 43 | 8 | M4 | 12 | 6 | 8 | 33 |
| NRBA66 | 66 | 12 | M5 | 14.2 | 8 | 20 | 104 |
| NRBA88 | 88 | 12 | M8 | 15.8 | 8.5 | 42 | 200 |
-

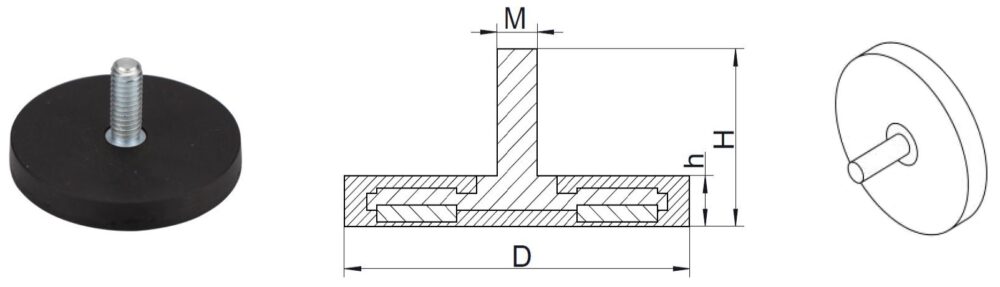

Model 2
| MODEL | D (mm) | M (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|
| NRBB22 | 22 | M4 | 12.5 | 6 | 5 | 14 |
| NRBB34 | 34 | M4 | 16.5 | 6 | 6 | 25 |
| NRBB43 | 43 | M6 | 21 | 6 | 8 | 32 |
| NRBB66 | 66 | M8 | 23 | 8 | 20 | 107 |
| NRBB88 | 88 | M8 | 24.5 | 8.5 | 42 | 193 |
-

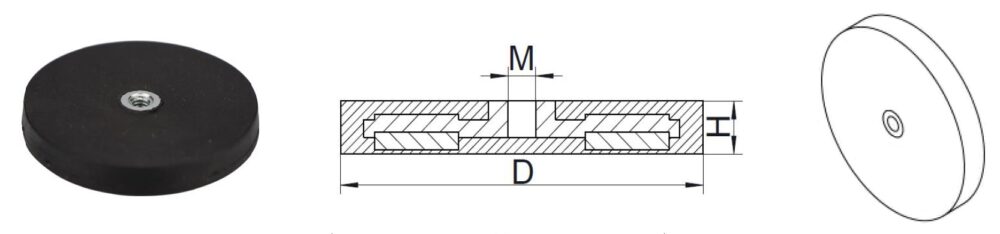

Model 3
| MODEL | D (mm) | M (mm) | H (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|
| NRBC22 | 22 | M4 | 6 | 4 | 11 |
| NRBC34 | 34 | M4 | 6 | 6 | 20 |
| NRBC43 | 43 | M4 | 6 | 8 | 29 |
| NRBC66 | 66 | M6 | 8 | 20 | 100 |
| NRBC88 | 88 | M8 | 8.5 | 42 | 186 |
-

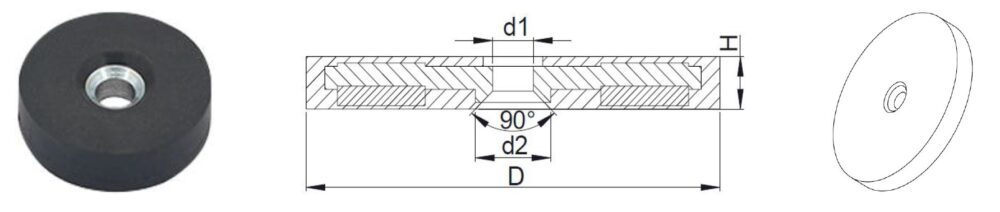

Model 4
| MODEL | D (mm) | d1 (mm) | d2 (mm) | H (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|
| NRBD22 | 22 | 4.5 | 8.6 | 6 | 2 | 8 |
| NRBD34 | 34 | 4.5 | 8.6 | 8 | 6 | 20 |
| NRBD43 | 43 | 4.5 | 8.6 | 6 | 9 | 27 |
| NRBD57 | 57 | 5.5 | 10.6 | 8 | 18 | 77 |
| NRBD66 | 66 | 6.5 | 12 | 8 | 20 | 100 |
| NRBD88 | 88 | 8.5 | 19 | 8.5 | 42 | 182 |
-

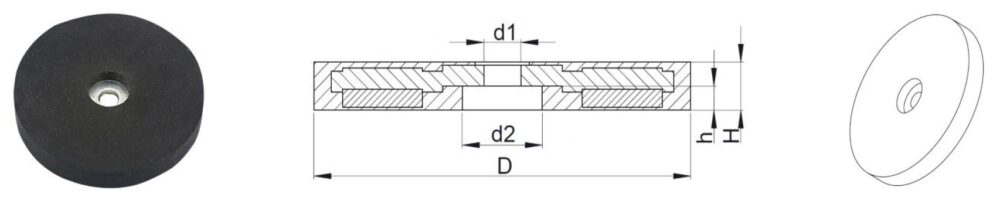

Model 5
| MODEL | D (mm) | d1 (mm) | d2 (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|---|
| NRBE22 | 22 | 4.5 | 8.6 | 6 | 3 | 2 | 8 |
| NRBE34 | 34 | 4.5 | 9.5 | 8 | 4 | 6 | 20 |
| NRBE43 | 43 | 4.5 | 9.5 | 6 | 3 | 9 | 27 |
| NRBE57 | 57 | 5.5 | 12 | 8 | 4 | 18 | 77 |
| NRBE66 | 66 | 6.5 | 14 | 8 | 4 | 20 | 100 |
| NRBE88 | 88 | 8.5 | 18 | 8.5 | 4 | 42 | 182 |
Packaging for NRB Series (Rubber Covered Pot Magnets with Metal Handles)
Shipping Methods for NRB Series (Rubber Covered Pot Magnets with Metal Handles)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
