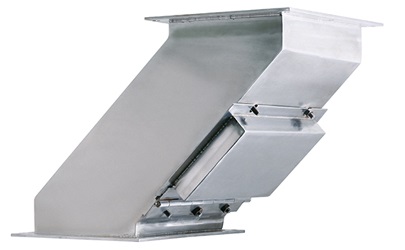

Half Hump Magnetic Separator
FOB Price: Get Latest Price
Min.Order Quantity: 1 Piece
Supply Ability: 100 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Production Lead Time: About 30-50 days
Application:
Hump magnetic separators are used to remove large pieces of tramp irons as well as ferrous fragments from gravity-flow materials or material flow pushed by air in enclosed flow lines before they get to the storage bins or processing equipment. They can be mounted in spouting lines or on the processing machines. Half-Hump Magnetic separators are developed for the situation with height restriction where the full hump magnetic separators can not be mounted.
Main Features:
1. It is the magnetic separator with plate magnet.
2. The magnetic plate can be made of rare earth magnets or ferrite magnets per customer’s request. The housing material can be 304 or 316L stainless steel.
3. The design of angle shape makes the material to flow directly into the magnetic field in order to prevent material from caking and bridging.
4. Simple structure, easy cleaning and assembly.
5. Inlet, outlet and any other special requirements can be custom made.

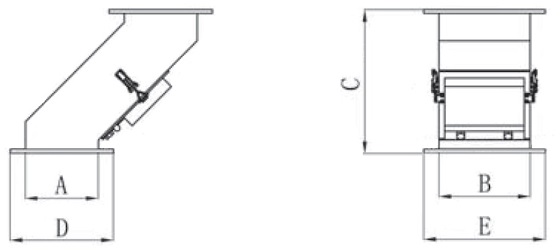

Half Hump Magnetic Separator Technical Data
1. Ferrite Half Hump Magnetic Separators
| MODEL NO | Dimension (mm) | Weight (kgs) | ||||
| A | B | C | D | E | ||
| FHHM120 | 120 | 150 | 235 | 170 | 200 | 7.5 |
| FHHM150 | 150 | 178 | 375 | 250 | 220 | 18.5 |
| FHHM200 | 200 | 178 | 375 | 300 | 220 | 24.5 |
| FHHM250 | 250 | 178 | 375 | 350 | 220 | 30.5 |
| FHHM300 | 300 | 178 | 375 | 400 | 220 | 36.5 |
| FHHM350 | 350 | 200 | 555 | 450 | 300 | 70.5 |
| FHHM400 | 400 | 200 | 555 | 500 | 300 | 80.5 |
| FHHM450 | 450 | 200 | 555 | 550 | 300 | 90.5 |
| FHHM500 | 500 | 200 | 555 | 600 | 300 | 100.5 |
2. Neodymium Half Hump Magnetic Separators
| MODEL NO | Dimension (mm) | Weight (kgs) | ||||
| A | B | C | D | E | ||
| NHHM120 | 120 | 150 | 235 | 170 | 200 | 7 |
| NHHM150 | 150 | 178 | 375 | 250 | 220 | 16.5 |
| NHHM200 | 200 | 178 | 375 | 300 | 220 | 22 |
| NHHM250 | 250 | 178 | 375 | 350 | 220 | 27.5 |
| NHHM300 | 300 | 178 | 375 | 400 | 220 | 33 |
| NHHM350 | 350 | 200 | 555 | 450 | 300 | 64 |
| NHHM400 | 400 | 200 | 555 | 500 | 300 | 73 |
| NHHM450 | 450 | 200 | 555 | 550 | 300 | 82 |
| NHHM500 | 500 | 200 | 555 | 600 | 300 | 91 |
Related Products
Half Hump Magnetic Separator Shipping Methods
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
For more details about half hump magnetic separator, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
