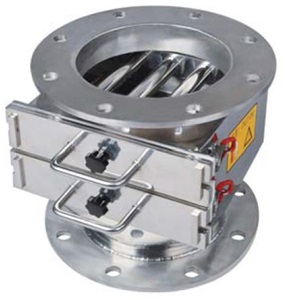

Magnetic Drawer

Main Features:
1. Normal magnetic drawer (N style) with max magnetic strength 12,000 Gs and Easy-cleaning magnetic drawer (E style) with max 8,000 Gs are available.
2. Square chutes and round pipelines flange can be optional for easy installation.
3. Standard working temperature ≤80℃. If needed, it can reach max 350℃.
4. Magnetic grid with one row, two rows or more can be produced according to our customer requirement.
5. Housing and magnetic tubes material are stainless steel 304 or 316L according to the requirement.

Applications:
Magnetic drawers are designed to remove the small ferromagnetic contamination from the dry powdery, scrap, granule product such as sugar, grain, tea, etc. They are widely used in the industries related to ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining and environmental protection.

FOB Price: Get Latest Price Port: Shanghai/Hangzhou/Ningbo

Min.Order Quantity: 1 Piece Payment Terms: T/T, Western Union, Paypal

Supply Ability: 100 Piece/Month Production Lead Time: About 30-50 days

Magnetic Drawer Technical Data

1. Model No. Description:

2. Product Size

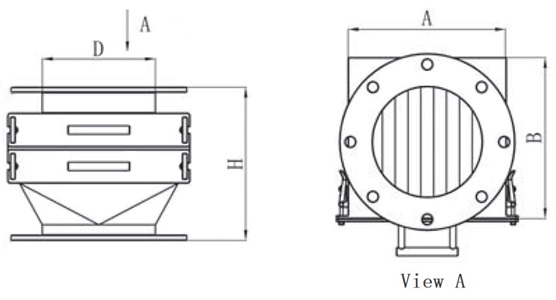

Round Flange Top


Model NO.	Dimensions (mm)				Weight (KGS)
	D	H	A	B
MD-NRD-150	159	286	208	205	20
MD-NRD-200	219	286	258	255	28
MD-NRD-250	273	286	308	305	33
MD-NRD-300	325	286	358	355	43
MD-NRS-150	159	216	208	205	16
MD-NRS-200	219	216	258	255	20
MD-NRS-250	273	216	308	305	24
MD-NRS-300	325	216	358	355	31

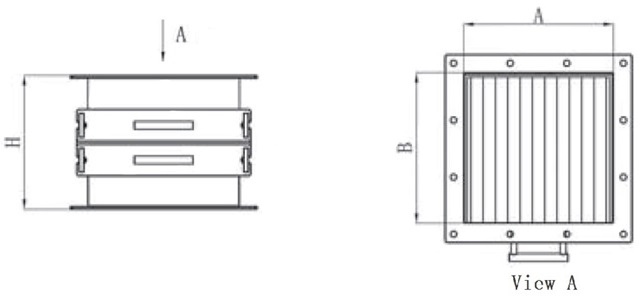

Square Flange Top


Model NO.	Dimensions (mm)			Weight (KGS)
	H	A	B
MD-NSD-2020	270	208	205	16.5
MD-NSD-2525	270	258	255	25.5
MD-NSD-3030	270	308	305	32.5
MD-NSD-3535	270	358	355	39
MD-NSD-4040	270	408	405	50
MD-NSS-2020	200	208	205	12.5
MD-NSS-2525	200	258	255	19.5
MD-NSS-3030	200	308	305	23.2
MD-NSS-3535	200	358	355	27
MD-NSS-4040	200	408	405	35.5
