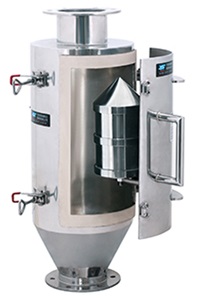

Magnetic Bullet Separator
Magnetic bullet separatorr is an efficient device for removing large pieces of tramp iron from pipelines system, which is widely used in the process of cleaning flour, grain, plastics, kaolin and french chalk.
Main Features:
1. The optimized bullet-shaped cone ensures the material flows into the magnetic field.
2. The magnetic strength range of the cone is from 3,000 Gs to 15,000 Gs. It ensures the Ferrous scraps are attracted on it firmly.
3. It is designed for a quick and easy cleaning: open the cover and clean the magnet.
4. Special requirement can be custom made.
FOB Price: Get Latest Price Port: Shanghai/Hangzhou/Ningbo
Min.Order Quantity: 1 Piece Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Piece/Month Production Lead Time: About 30-50 days

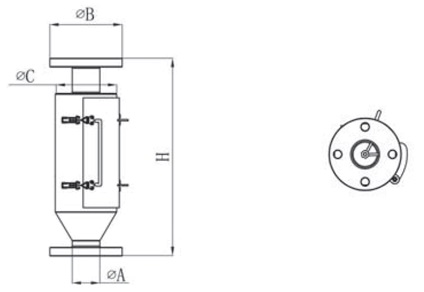

Magnetic Bullet Separator Technical Data
| MODEL NO | Dimension (mm) | Weight (kgs) | |||
| ΦA | B | C | H | ||
| BMCS50 | 51 | 150 | 114 | 380 | 9 |
| BMCS65 | 76 | 185 | 168 | 540 | 20 |
| BMCS100 | 100 | 165 | 219 | 586 | 34 |
| BMCS150 | 150 | 225 | 273 | 655 | 48.5 |
| BMCS200 | 198 | 275 | 355 | 760 | 100 |
| BMCS250 | 248 | 325 | 426 | 850 | 121 |
| BMCS300 | 298 | 395 | 480 | 880 | 143 |
| BMCS400 | 395 | 480 | 610 | 1,100 | 227 |
Related Products
Magnetic Bullet Separator Shipping Methods
International Express (TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
For more details about magnetic bullet separator, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
