Plate Housing Magnetic Separator
Plate housing magnetic separators are widely used in the filed of food, pharmacy, tobacco, chemical etc to remove tramp iron and ferrous fines from flow-resistant bulk materials that are easy to be blocked. The stainless steel housings can be easily installed to enclosed spouting line or directly mounted on processing equipment.
Main Features:
1. Plate Magnets are hinged to the housing like doors which is easy for cleaning.
2. A wedge-shaped baffle at the top of the housing can prevent materials from bridging and choking and also can break up the caked material which makes the material flows through the surfaces of two powerful Plate Magnets.
3. With high power rare earth magnets, plate housing magnetic separator ensures to grab all sizes of contamination firmly.
4. Inlet, outlet and any other special requirements can be custom made.
FOB Price: Get Latest Price Port: Shanghai/Hangzhou/Ningbo
Min.Order Quantity: 1 Piece Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Piece/Month Production Lead Time: About 30-50 days
Plate Housing Magnetic Separator Technical Data

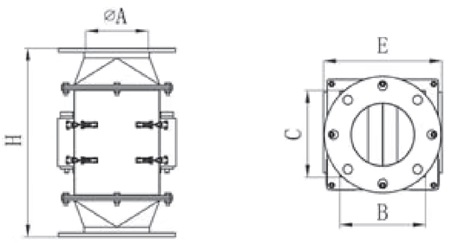

1. Plate Housing Magnetic Separator with Round Flange Connection
| MODEL NO | Dimension (mm) | Weight (kgs) | ||||
| ΦA | B | C | E | H | ||
| PHM150 | 150 | 208 | 208 | 322 | 470 | 27 |
| PHM200 | 200 | 208 | 258 | 322 | 470 | 34 |
| PHM250 | 250 | 258 | 358 | 372 | 500 | 62 |

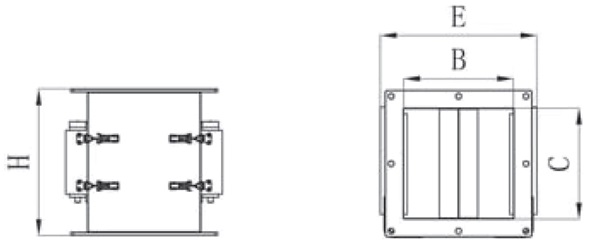

2. Plate Housing Magnetic Separator with Square Flange Connection
| MODEL NO | Dimension (mm) | Weight (kgs) | |||
| B | C | E | H | ||
| PHM2020 | 208 | 208 | 322 | 300 | 17 |
| PHM2025 | 208 | 258 | 322 | 300 | 21 |
| PHM2525 | 258 | 258 | 372 | 300 | 27 |
| PHM2530 | 258 | 308 | 372 | 300 | 32 |
| PHM2535 | 258 | 308 | 372 | 300 | 37 |
| PHM2540 | 208 | 408 | 372 | 300 | 42 |
| PHM2545 | 258 | 458 | 372 | 300 | 47 |
| PHM2550 | 208 | 508 | 372 | 300 | 53 |
| PHM2555 | 258 | 558 | 372 | 300 | 58 |
| PHM2560 | 258 | 608 | 372 | 300 | 63 |
Related Products
Plate Housing Magnetic Separator Shipping Methods
International Express (TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
For more details about plate housing magnetic separator, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
