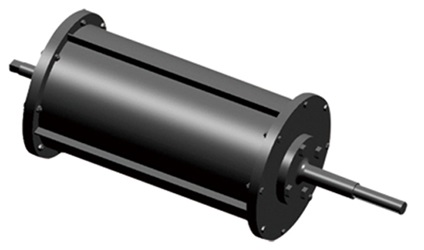

Half Magnetic Roller
Half magnetic roller also named half magnetic drum is composed of a revolving round stainless steel cover and a shaft to generate a half disc(180 degree) stationary magnetic field . It becomes an automatic separating system when the drum is driven by a motor.
Application:
Half magnetic roller is mainly used to remove or sort ferrous fines, tramp iron and other ferromagnetic impurities from bulk dry material flow such as iron ore, grain, sand, gravel, plastics, wood, waste, cullet, etc.
Main Features:
1. Continuous self-cleaning design is suitable for automatic production line.
2. Housing material is 304 or 316L stainless steel which has good corrosion resistance performance.
3. No electric power required to generate magnetic field.
4. Magnetic strength can be chosen by customers.
FOB Price: Get Latest Price Port: Shanghai/Hangzhou/Ningbo
Min.Order Quantity: 1 Piece Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Piece/Month Production Lead Time: About 30-50 days

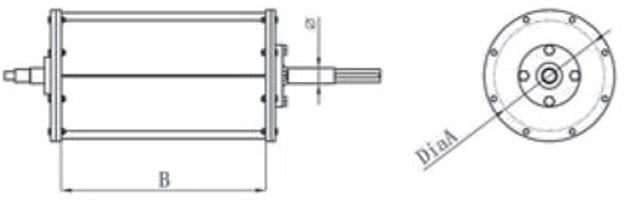

Half Magnetic Roller Technical Data
| MODEL NO | Dia A (mm) | B (mm) | Φ (mm) | Weight (KGS) |
|---|---|---|---|---|
| HDMS2130 | 215 | 300 | 25 | 29 |
| HDMS2135 | 215 | 350 | 25 | 34 |
| HDMS2140 | 215 | 400 | 25 | 39 |
| HDMS2145 | 215 | 450 | 25 | 44 |
| HDMS2150 | 215 | 500 | 25 | 49 |
| HDMS2160 | 215 | 600 | 25 | 59 |
| HDMS2170 | 215 | 700 | 25 | 69 |
| HDMS2180 | 215 | 800 | 25 | 79 |
| HDMS2190 | 215 | 900 | 25 | 89 |
| HDMS2110 | 215 | 1000 | 25 | 99 |
| HDMS3130 | 315 | 300 | 25 | 62 |
| HDMS3135 | 315 | 350 | 25 | 72 |
| HDMS3140 | 315 | 400 | 25 | 82 |
| HDMS3145 | 315 | 450 | 25 | 92 |
| HDMS3150 | 315 | 500 | 25 | 102 |
| HDMS3160 | 315 | 600 | 25 | 122 |
| HDMS3170 | 315 | 700 | 25 | 142 |
| HDMS3180 | 315 | 800 | 25 | 162 |
| HDMS3190 | 315 | 900 | 25 | 182 |
| HDMS3110 | 315 | 1000 | 28 | 202 |
| HDMS3111 | 315 | 1100 | 28 | 222 |
| HDMS4030 | 400 | 300 | 28 | 100 |
| HDMS4035 | 400 | 350 | 28 | 116 |
| HDMS4040 | 400 | 400 | 28 | 132 |
| HDMS4045 | 400 | 450 | 28 | 148 |
| HDMS4050 | 400 | 500 | 28 | 164 |
| HDMS4060 | 400 | 600 | 28 | 180 |
| HDMS4070 | 400 | 700 | 28 | 196 |
| HDMS4080 | 400 | 800 | 35 | 212 |
| HDMS4090 | 400 | 900 | 35 | 228 |
| HDMS4010 | 400 | 1000 | 35 | 244 |
| HDMS4011 | 400 | 1100 | 35 | 260 |
| HDMS4012 | 400 | 1200 | 35 | 276 |
Related Products
Half Magnetic Roller Shipping Methods
International Express (TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
