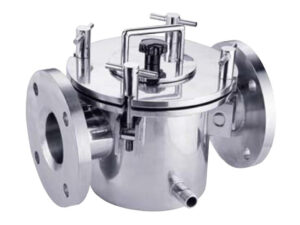

Insulation Type Magnetic Liquid Trap
FOB Price: Get Latest Price
Min.Order Quantity: 1 Piece
Supply Ability: 100 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Production Lead Time: About 30-50 days
Magnetic liquid traps or named magnetic liquid filters are designed for liquid or semi-liquid flow systems to remove ferrous contamination from liquid with various viscosity levels. With the magnetic liquid traps it can keep the liquid’s purity by removing small contaminants and provide magnetic protection for liquid lines and processing equipment.
Main Features:
1. Many different types are available for different materials.
2. The max magnetic strength can reach 12,000 Gs for NMLF series (normal type) and 8,000 Gs for EMLF series (easy cleaning type).
3. Standard working temperature ≤80℃. If needed, it can reach max 350℃ according to the application requirement.
4. Connection can be through ferrules, bolt plates, flanges, etc.
5. Stainless steel 304 or 316L is available for shell material.
6. Proper magnetic configuration designed ensures maximum magnetic effect while without impeding liquid flow.
7. Pressure design or other special requirement can be custom made.

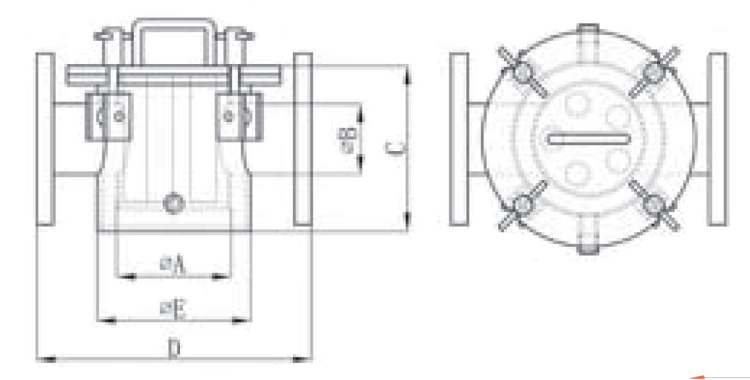

Insulation Type Magnetic Liquid Trap Technical Data
| Model No. | Dimensions (mm) | Rods QTY (PCS) | Weight (KGS) | ||||
| Dia. A | Dia. E | Dia. B | C | D | |||
| IMLF125/25 | 125 | 168 | 32 | 185 | 300 | 5 | 21 |
| IMLF125/32 | 125 | 168 | 38 | 185 | 300 | 5 | 22 |
| IMLF125/40 | 125 | 168 | 45 | 185 | 300 | 5 | 23 |
| IMLF125/50 | 125 | 168 | 57 | 185 | 300 | 5 | 24 |
| IMLF125/65 | 125 | 168 | 76 | 185 | 300 | 5 | 25 |
| IMLF160/50 | 160 | 219 | 57 | 220 | 360 | 7 | 32.5 |
| IMLF160/65 | 160 | 219 | 76 | 220 | 360 | 7 | 34 |
| IMLF160/80 | 160 | 219 | 89 | 220 | 360 | 7 | 36 |
| IMLF160/100 | 160 | 219 | 108 | 220 | 360 | 7 | 37.5 |

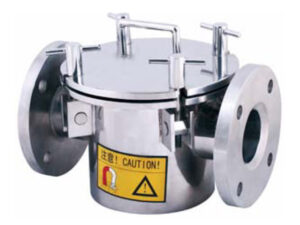

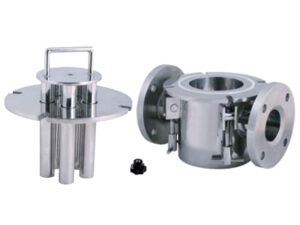

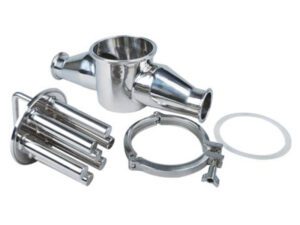

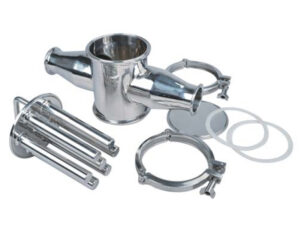

Magnetic Liquid Trap Series

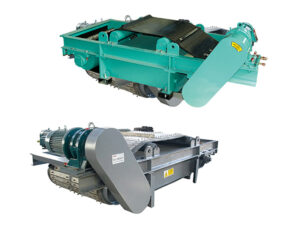

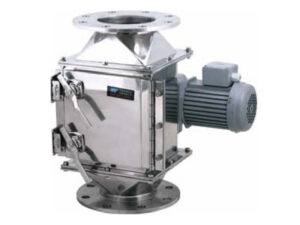

Related Products
Insulation Type Magnetic Liquid Trap Shipping Methods
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
For more details about insulation type magnetic liquid trap, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
