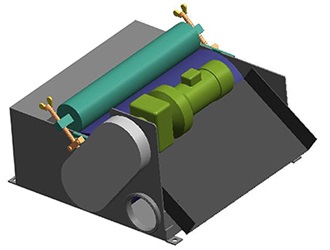

Magnetic Coolant Cleaner
FOB Price: Get Latest Price
Min.Order Quantity: 1 Piece
Supply Ability: 100 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Production Lead Time: About 30-50 days
Application:
Magnetic Coolant separators/ magnetic coolant cleaners are ideal to remove ferrous particles from the coolant to extend working life of the grind wheel and tools , and to improve the quality of product’s surface, also to save the cost by recycling the coolant. The system is widely used in the field of machining and grinding process.
Main Features:
1. The housing material is 304 or 316L stainless steel which has good corrosion resistance performance.
2. The rotatable drum is made of high intensity magnets which can continuously remove ferrous particles from the liquid flow.
3. Magnetic strength can be about 2,000 Gs from the cheaper ferrite magnets and 3,000~4,000 Gs from the powerful rare earth magnets.
4. Automatic operation to save the labor cost.
5. Easy mounted on the existing or new machines.

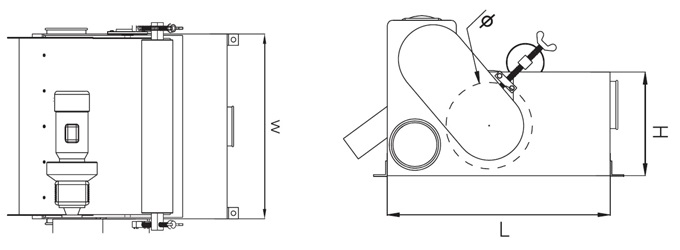

Magnetic Coolant Cleaner Technical Data
| MODEL NO | LPM (L/min) | L (mm) | W (mm) | H (mm) | Roller Φ (mm) | RPM (r/min) | In/out (inch) | Weight (KGS) |
|---|---|---|---|---|---|---|---|---|
| CMS25 | 25 | 450 | 150 | 205 | 150 | 2.5 | 1.5 | 41 |
| CMS50 | 50 | 450 | 200 | 205 | 150 | 2.5 | 2 | 55 |
| CMS75 | 75 | 450 | 250 | 205 | 150 | 2.5 | 2 | 63 |
| CMS100 | 100 | 450 | 300 | 205 | 150 | 2.5 | 2.5 | 75 |
| CMS150 | 150 | 500 | 350 | 255 | 180 | 2.5 | 3 | 121 |
| CMS200 | 200 | 500 | 450 | 255 | 180 | 2.5 | 3 | 155 |
| CMS300 | 300 | 650 | 450 | 305 | 200 | 2.5 | 3 | 241 |
| CMS400 | 400 | 650 | 550 | 305 | 200 | 2.5 | 4 | 294 |
| CMS500 | 500 | 650 | 650 | 305 | 200 | 2.5 | 5 | 347 |
Related Products
Magnetic Coolant Cleaner Shipping Methods
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
For more details about magnetic coolant cleaner, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
