Neodymium magnetic hooks (SE series)
Neodymium magnetic hooks use neodymium magnets to attract on the flat surface and the hooks to hang the objects. The standard version is the metal shell plated with nickel.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium magnetic hooks | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and hook | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
| Application: Industrial magnets |
Technical Data for SE Series (Neodymium Magnetic Hooks)
-

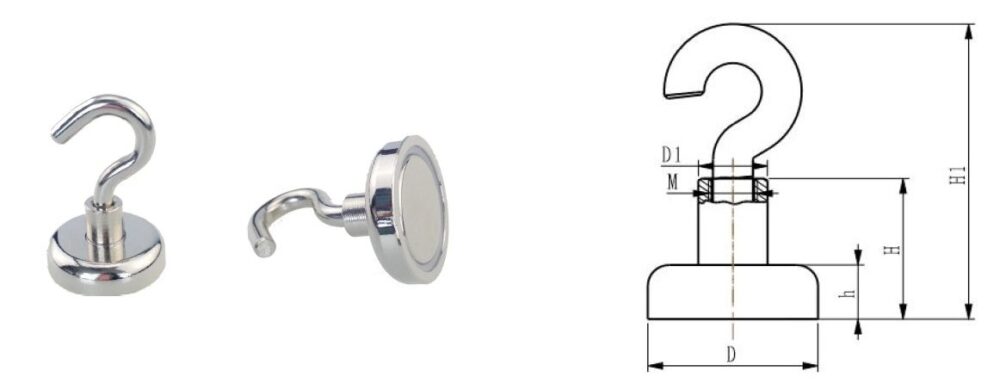

Metal shells made by stamping process
| Model | D (mm) | D1 (mm) | M (mm) | h (mm) | H (mm) | H1 (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|---|---|
| NSE10 | 10 | 6 | M3 | 5 | 12.5 | 33 | 2 | 6 |
| NSE12 | 12 | 6 | M3 | 5 | 12.5 | 33 | 4 | 7 |
| NSE16 | 16 | 6.5 | M4 | 5 | 12.6 | 35 | 8 | 12 |
| NSE20 | 20 | 6.5 | M4 | 7 | 14 | 36 | 12 | 21 |
| NSE25 | 25 | 7.5 | M5 | 8 | 17 | 45 | 23 | 37 |
| NSE32 | 32 | 10 | M6 | 8 | 18 | 48 | 34 | 61 |
| NSE36 | 36 | 10 | M6 | 8 | 18 | 48 | 50 | 69 |
| NSE42 | 42 | 10 | M6 | 8.6 | 18 | 48 | 72 | 101 |
-

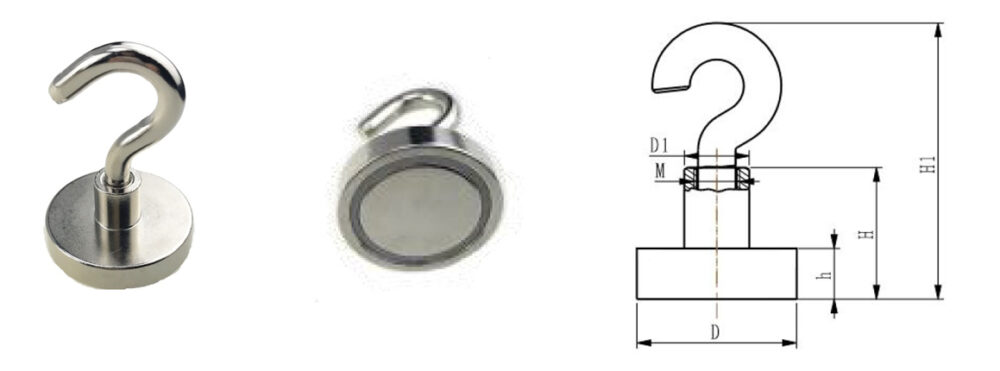

Metal shells made by machining
| Model | D (mm) | D1 (mm) | M (mm) | h (mm) | H (mm) | H1 (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|---|---|
| CSE48 | 48 | 12 | M8 | 11 | 24 | 61 | 81 | 182 |
| CSE60 | 60 | 12 | M8 | 15 | 28 | 64.5 | 160 | 362 |
| CSE75 | 75 | 17 | M10 | 18 | 35 | 81 | 270 | 681 |
Packaging for SE Series (Neodymium Magnetic Hooks)
Shipping Methods for SE Series (Neodymium Magnetic Hooks)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium magnetic hooks, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
